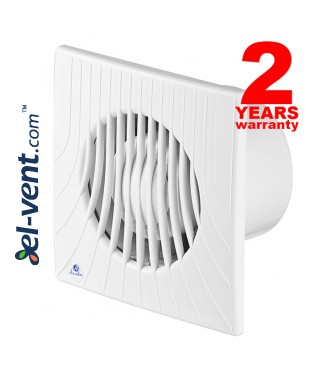

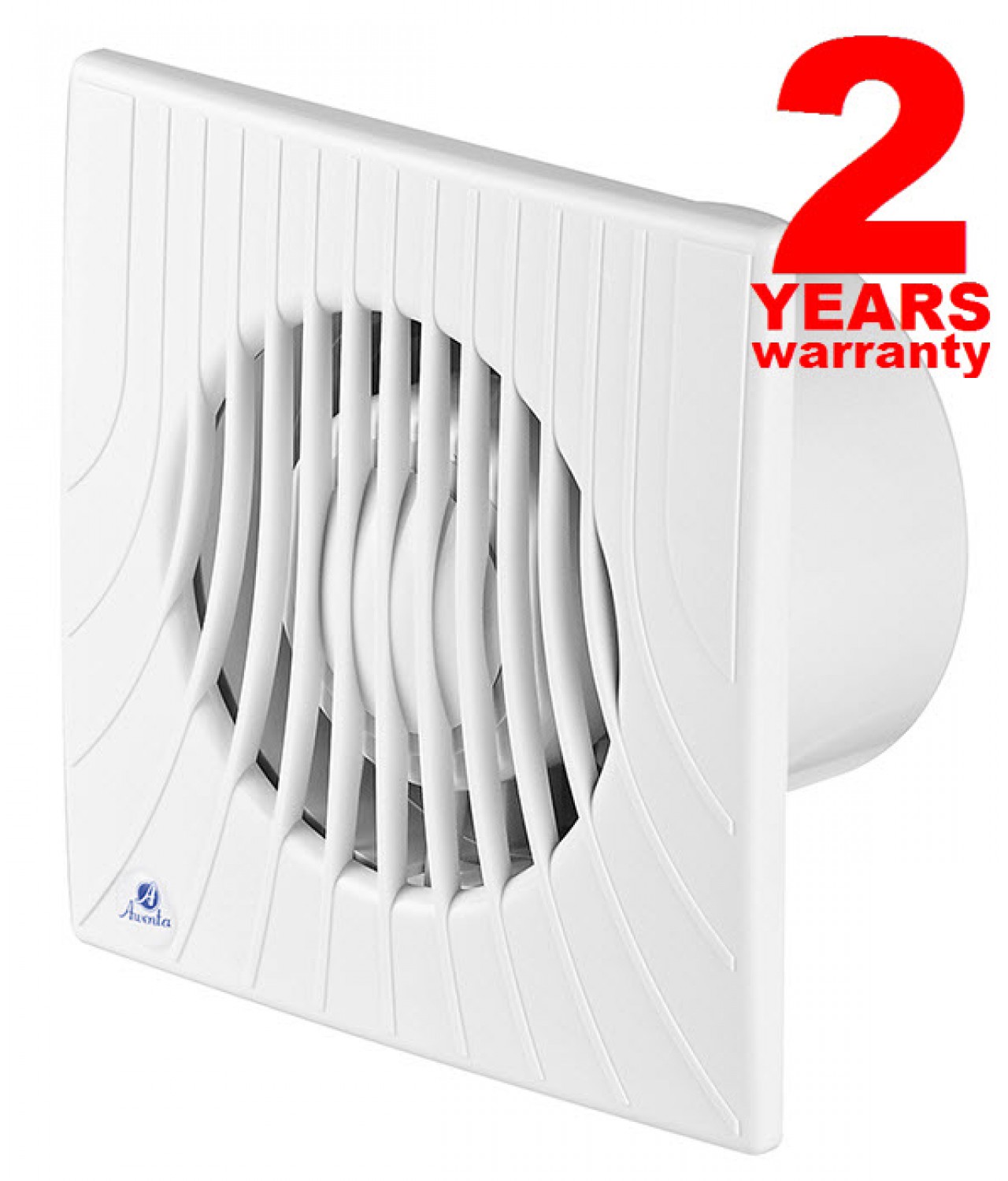

Bathroom exhaust fan EWA

  • EWA - bathroom exhaust fans with thin covers, the fan can be selected from the following modifications:
  1. standard
  2. H - with timer and humidity sensor, adjustment scale from 40% to 90%
  3. T - with timer
  4. W - with pull cord switch
  • can be mounted in any position, in the wall or ceiling
  • standard and W models - to connect use two-core cable
  • H, T models - to connect use tree-core cable
  • ABS plastic housing
  • mount with screws (supplied)
  • made in Poland
  • 2 years warranty

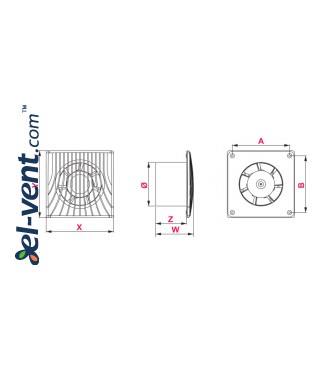

Code
Ø
A
B
X
Y
W
Z
EWA100
100
130
130
154
154
87
77
EWA120 120 130 130 154 154 87 77
EWA150 150 161 161 188 188 97 77





Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
EWA100
230
50
14
90
37
X4
30
EWA120 230 50 16 135 41 X4 60
EWA150 230 50 20 180 43 X4 42



Connection to the power supply:

Standard and W models
N - null
L - phase





H, T and CTR models
T - phase through switch
N - null
L - phase
