Price / OSA:
Select
  • 63/1/080F 13.67 €
  • 63/1/100F 13.67 €
  • 63/1/125F 13.67 €
  • 63/2/100F 15.86 €
  • 63/2/125F 15.86 €
  • 63/3/100F 20.22 €
  • 63/3/125F 20.22 €
  • 63/3/160F 20.22 €
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

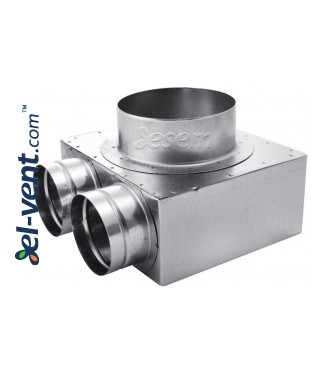

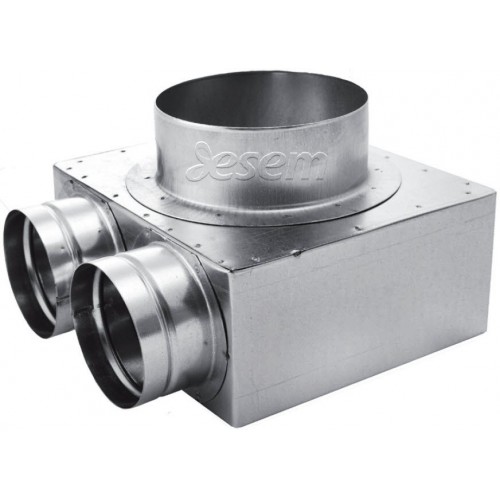

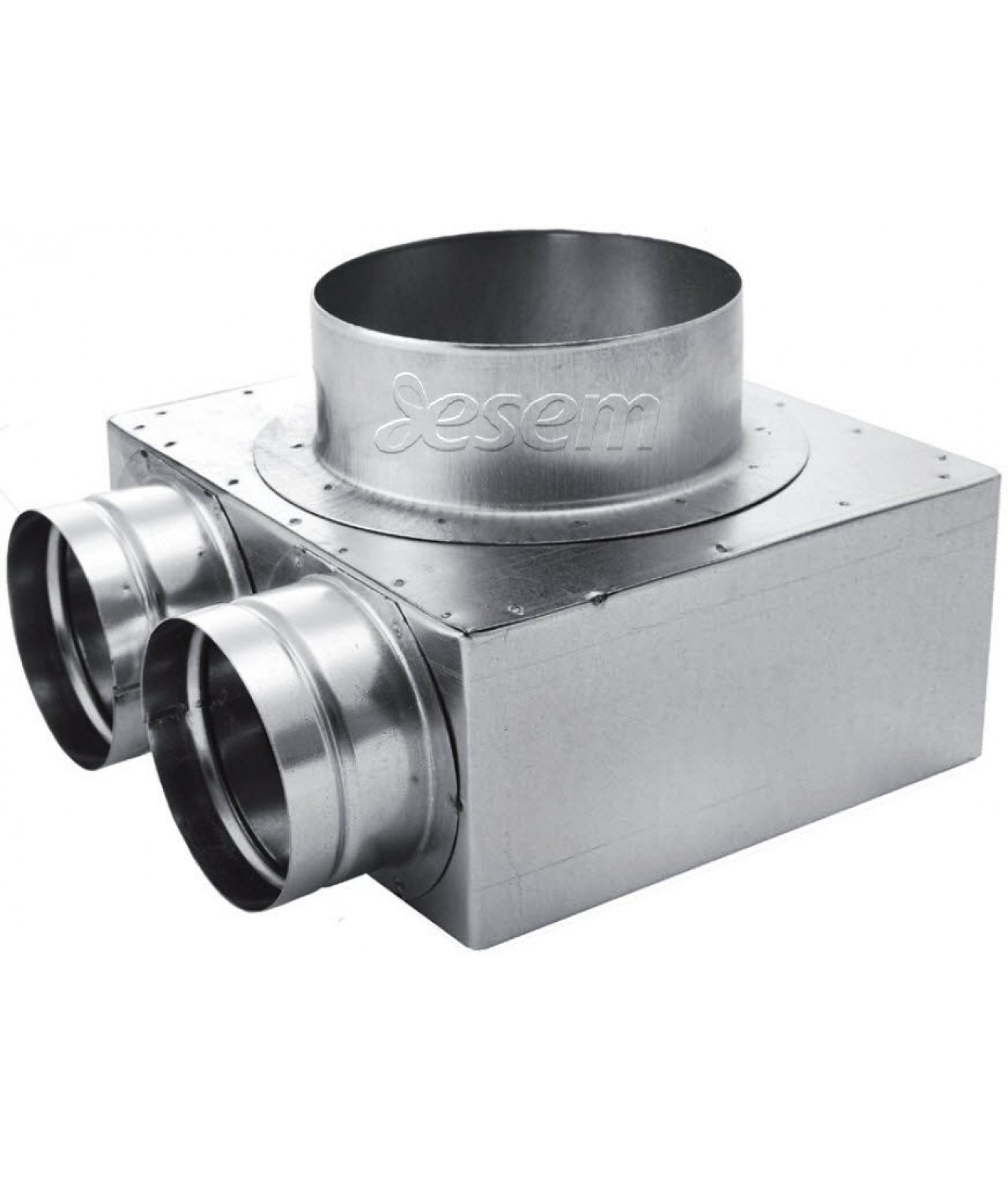

Air distribution box for rigid duct system OSA63

  • conforms to C-tightness class according to EN12237 standard
  • exceptionally simple installation - just plug the duct on the connector
  • made from galvanized steel
  • marking:
Ød1 - diffusers connector diameter, mm
Ød2 - rigid duct connectors diameter, mm
n - number of rigid duct connections, Ø63 mm - outer connections
F - d1 female connector, for diffuser
Code
A B C
d1
n d2
OSA63/1/XXX/F 180 180 75 80-160 1 63
OSA63/2/XXX/F 180 180 75 80-160 2 63
OSA63/3/XXX/F 180 270 75 80-160 3 63
OSA75/1/XXX/F 180 200 90 80-160 1 63
OSA75/2/XXX/F
180 200 90
80-160
2 63
OSA75/3/XXX/F 180 300 90 80-160 3 63
OSA90/1/XXX/F 180 200 90 80-160 1 75
OSA90/2/XXX/F 180 200 90 80-160 2 75
OSA90/3/XXX/F 180 300 90 80-160 3 75



63 mm



75-90 mm
