Diameter:
Select
  • Ø 80 mm
  • Ø 100 mm
  • Ø 125 mm
  • Ø 160 mm
  • Ø 200 mm
  • Ø 250 mm
Price / OSG:
Select
  • OSG63/2x5 211.30 € 95.08 € (-55%)
  • OSG63/2x6 230.41 € 103.68 € (-54%)
  • OSG63/2x7 266.13 € 119.75 € (-55%)
Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

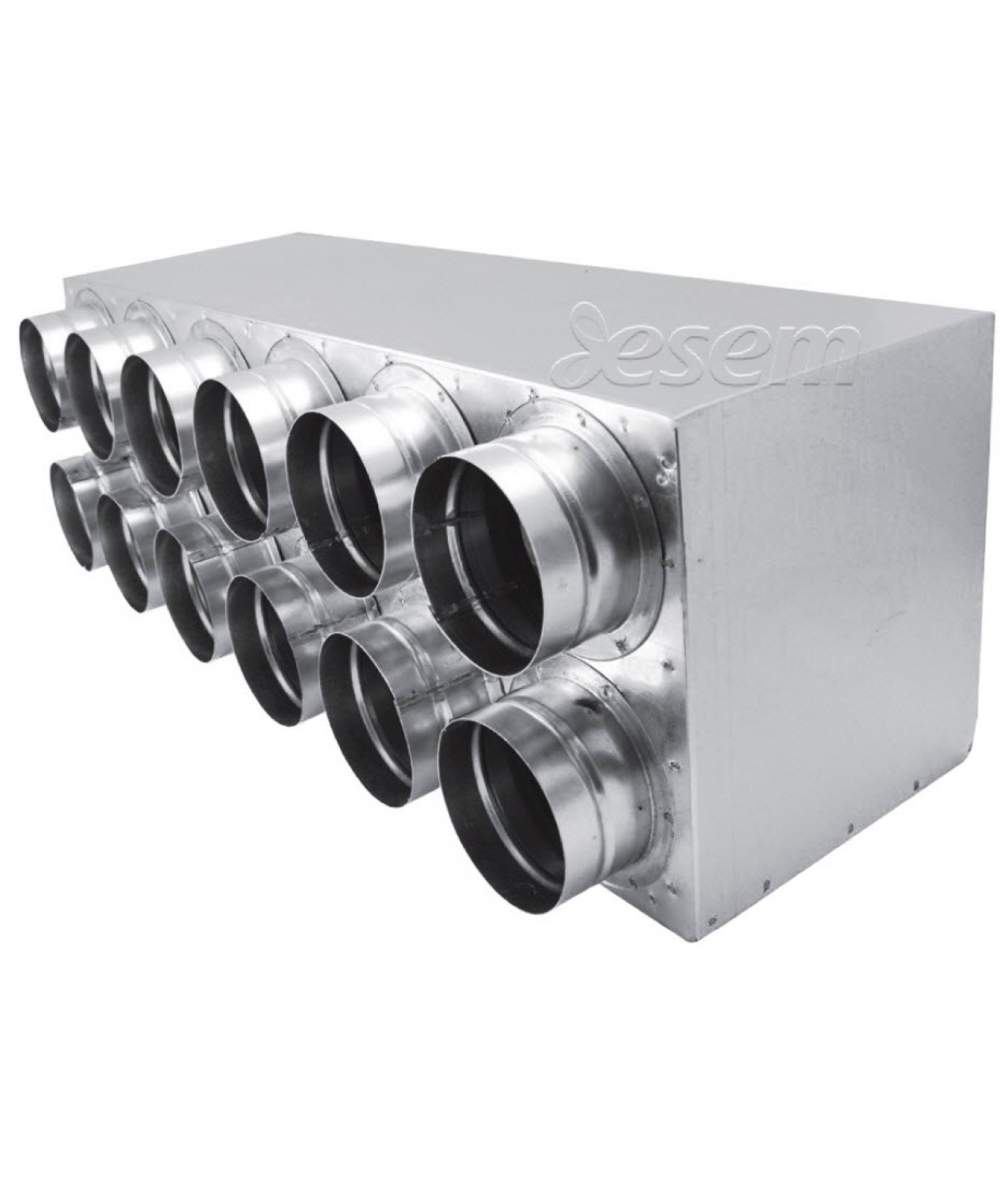

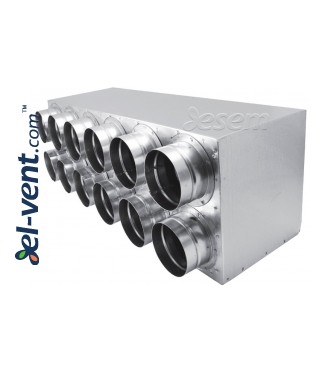

Air distributors for semi-rigid vent system OSG63

  • conforms to C-tightness class according to EN12237 standard
  • exceptionally simple installation - just plug the duct on the connector
  • made from galvanized steel
  • marking:
Ød1 - diffusers connector diameter, mm
Ød2 - rigid duct connectors diameter, mm
n - number of rigid duct connections, Ø63 mm - outer connections, Ø75 or 90 mm - inner connections
M - d1 male connector

Brand: ESEM
Code
A B C L
d1
n d2
OSG63/2x5 500 180 230 60 80-250 10 63
OSG63/2x6 600 180 230 60 80-250 12 63
OSG63/2x7 700 180 230 60 80-250 14 63
OSG75/2x3 325 180 230 60 80-250 6 63
OSG75/2x4 425 180 230 60 80-250 8 63
OSG75/2x5 500 180 230 60 80-250 10 63
OSG75/2x6 600 180 230 60 80-250 12 63
OSG75/2x7 700 180 230 60 80-250 14 63
OSG90/2x3 375 180 230 60 80-250 6 75
OSG90/2x5 500 180 230 60 80-250 10 75
OSG90/2x6 600 180 230 60 80-250 12 75
OSG90/2x7 700 180 230 60 80-250 14 75



63 mm



75-90 mm
