Centrifugal ceiling fans COMPACT

Price / COMPACT:
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Centrifugal ceiling fans COMPACT

Attention! COMPACT100, COMPACT100T, COMPACT200T, COMPACT300T are always on the stock, other models delivery time - 30 days

  • COMPACT - centrifugal fans to extract air through ducting or pipes from Ø100-120 mm

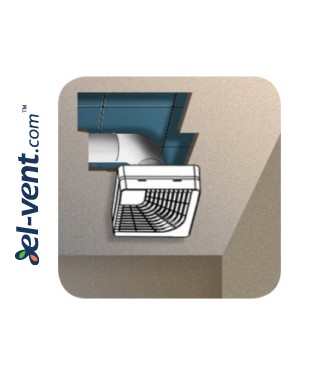

  • suitable for wall/ceiling mounting even through ducts in awkward places thanks to the position of the outlet hole in the corner
  • backdraught shutter to prevent ingress of air and foul odours
  • simple to remove the washable filter
  • four models: Base, T (timer), HT (hygrostat and timer) model options, Sensor (motion sensor)
  • T (timer) turn-off delay adjustable from 2 to 25 min.
  • HT (hygrostat and timer) - the fan automatically starts when the humidity in the room is higher than the preset value, adjustable from 40% to 90%
  • Sensor version: The fan automatically starts when the sensor detects a presence in the room. When the room is
    vacated the fan will continue to run according to the preset value on timer
  • double insulated product, without ground wire for fast connection
  • body and grille in white ABS
  • adjustable speed through RGE or RG 5 controller (base version only)
  • IPX4 protected (EN 60529)
  • in accordance with Standard EN 60335-2-80
  • made in Italy - O.ERRE
  • 2 years warranty



Complectation



The rotating body allows air extraction from different spigot positions

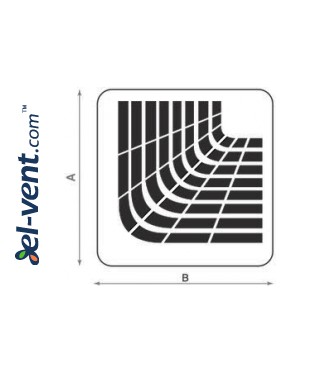

Code A B C D Ø E
COMPACT100
210 210 95 20 97
COMPACT200/300
250 250 111 20 97
Code
Ø hole, mm
Voltage, V
Frequency, Hz
Capacity, m3/h
Pressure,
Pa
Power, W Noise level, dB(A)3m Weight, kg
COMPACT100 100-120 220-240 50 85 123 28 40 1.3
COMPACT100T 100-120 220-240 50 85 123 28 40 1.3
COMPACT100HT 100-120 220-240 50 85 123 28 40 1.3
COMPACT100S 100-120 220-240 50 85 123 28 40 1.3
COMPACT200 100-120 220-240 50 160 196 76 45 1.8
COMPACT200T 100-120 220-240 50 160 196 76 45 1.8
COMPACT200HT 100-120 220-240 50 160 196 76 45 1.8
COMPACT300 100-120 220-240 50 250 392 95 54 2.3
COMPACT300T 100-120 220-240 50 250 392 95 54 2.3
COMPACT300HT 100-120 220-240 50 250 392 95 54 2.3



Speed controllers RG 5 and RGE





Pressure loss diagrams
