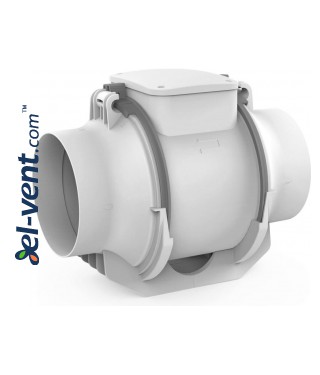

Duct fan LINEAR125, Ø125 mm

PRICE:
162.14 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Duct fan LINEAR125, Ø125 mm

  • with ball bearings
  • three speeds
  • for mounting with Ø125 mm duct system
  • housing made from mechanically durable plastic
  • with mounting bracket
  • made in Italy
  • 2 years warranty
  • it is recommended to control the speed through the three-speed controller:



  • it is recomended to install fan with sealing clamps:





Code
A
B
C
D
E
F
G
L
Ø
LINEAR100
258
97.5
102.5
210
180
92
38.5
67.5
100
LINEAR125
258
122.5
102.5
210
180
92
38.5
67.5
125
LINEAR150
263
147.5
115
235
205
92
38.5
67.5
150
LINEAR160
267
157.5
115
235
205
92
38.5
67.5
160



Code
Voltage, V
Protection
class
Capacity, m3/h
Pressure, Pa
Speed, min-1
Power, W
Noise level, dB (A)3m
Speed
Speed
Speed
Speed
Speed
I
II
III
I
II
III
I
II
III
I
II
III
I
II
III
LINEAR100
220
IPX4
260
190
140
186.4
127.5
107.9
2250
1550
1300
27
23
20
38
30
26
LINEAR125
220
IPX4
350
230
180
166.8
107.9
78.5
2000
1350
1150
29
23
20
42
33
29
LINEAR150
220
IPX4
500
360
300
264.9
166.8
137.3
2000
1400
1200
40
35
33
51
42
37
LINEAR160
220
IPX4
500
360
300
264.9
166.8
137.3
2000
1400
1200
40
35
33
51
42
37



Mounting instructions and connection to the power supply







Pressure loss diagram
