Duct fan DVPP160, Ø160 mm

PRICE:
83.43 €    111.25 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

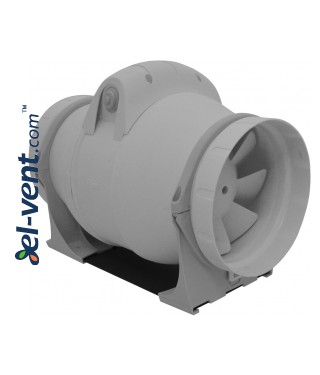

Duct fan DVPP160, Ø160 mm

  • with ball bearings
  • two speeds
  • for mounting with Ø160 mm duct system
  • housing made from mechanically durable plastic
  • with mounting bracket
  • made in Poland
  • 2 years warranty
  • it is recommended to control the speed through the three-speed controller (if the fan has two speeds, use the first two connection terminals in speed controller):



  • it is recomended to install fan with sealing clamps:

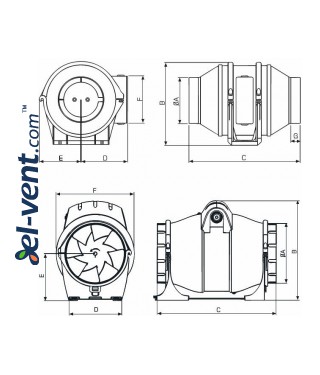

Code
 ØA
 B
C
D
E
F
G
DVPP160
157
244
 313
 30
115
192
21
Code
Capacity, m³/h
Electric current, A
Power, W
 Noise level, dB
Speed, min-1
Protection class IP
DVPP160
595/425
 0,36/0,27
 80/60
 33/27
2700/2000
44



Connection to the power supply



Pressure loss diagram
