Centrifugal fans with stainless steel body CAI ≤1450 m³/h

Price / CAI:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

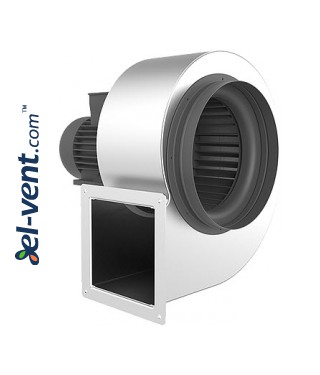

Centrifugal fans with stainless steel body CAI ≤1450 m³/h

  • CAI - centrifugal duct fans to extract air and fumes with chemical agents or for salt environments
  • suitable for application on machines where a forced ventilation or air suction is required
  • particularly suitable for applications where a high degree of hygiene (food industries) is necessary
  • temperature of extracted air 50 °C
  • body and impeller in AISI 304 stainless steel
  • suitable to overcome high pressure losses due to ducts resistance
  • motor speed can be regulated through industrial controllers RGM 2 (510/2M-520/2M), RGM 4 (530/2M - 540/2M), RGT 1 (5102T - 520T) and RGT 2 (5302T - 5402T)
  • models CAI530 and CAI540 supplied with ball bearing motor IP55 protected
  • in accordance with the essential requirements of 2006/42/EC Directive concerning machines and European Standards UNI EN ISO 13857, UNI EN ISO 12499, CEI EN 60204-1
  • made in Italy - O.ERRE
  • 1 year warranty



Standard product supplied with impeller housing position CCW 270, different positions available on request

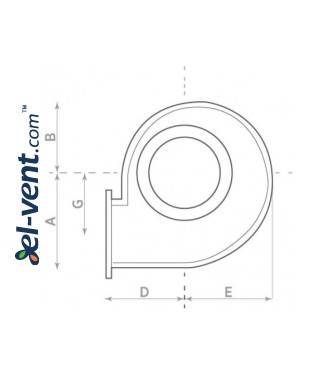

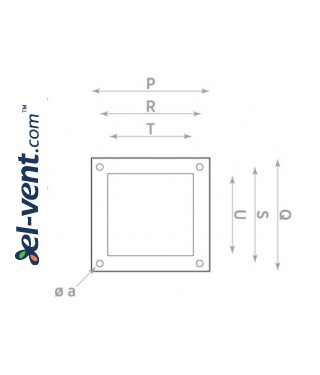

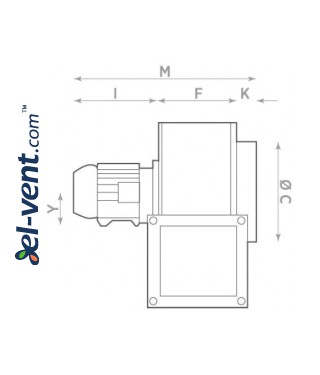

Code
A
B
Ø C
D
E
F
Y K I M P Q R S T U Ø a
CAI510 80 66 68 86 72 60 - - 110 170 100 100 85 85 58 58 5.7
CAI520 95 76 90 105 80 77 - - 121 198 115 110 95 90 64 64 6.8
CAI50 139 108 180 127 122 94 63 42 190 326 135 135 114 114 90 90 8.2
CAI540 172 125 200 146 150 112 71 45 210 367 152 152 126 126 105 105 8.2
Code
IP class
Phase
N° poles
Voltage, V at 50Hz
Capacity, m³/h
Pressure, Pa
Power, W Current, A Noise level, dB(A)2m Speed, min-1 Weight, kg
230 V 400 V
CAI510/2M 22 I 2 230 210 216 67 0.29 - 64 2800 2.5
CAI520/2M 22 I 2 230 380 343 115 0.49 - 68 2500 3.5
CAI530/2M 55 I 2 230 1000 650 400 1.8 - 76 2800 7.0
CAI540/2M 55 I 2 230 1450 850 900 3.5 - 86 2750 9.0
CAI510/2T 22 III 2 230/400 210 216 67 0.26 0.15 64 2800 2.5
CAI520/2T 22 III 2 230/400 380 343 110 0.36 0.21 68 2500 3.5
CAI530/2T 55 III 2 230/400 1000 650 400 1.75 1.0 76 2800 7.0
CAI540/2T 55 III 2 230/400 1450 850 900 2.4 1.4 83 2750 9.0



IP55 speed controllers RGM 2 (510/2M-520/2M), RGM 4 (530/2M - 540/2M), RGT 1 (5102T - 520T) and RGT 2 (5302T - 5402T)



Pressure loss diagrams
