Heat and energy recovery unit ERGO1000

PRICE:
2,460.06 €    3,280.09 €
Qty.:

European delivery - 14 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

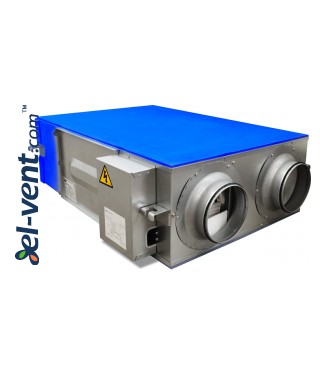

Heat and energy recovery unit ERGO1000

  • for small and medium-sized indoor ventilation
  • hexagonal counter-flow heat exchanger is build from plastic and cellulose, which has high rate of humidity permeability, good air tightness and resistance to aging. Special paper has gaps between fibers big enough to let the H2O water particles pass thru and holds bigger particles like CO2, NH3, CH4. Therefore it prevents any pollution from infiltrating air stream

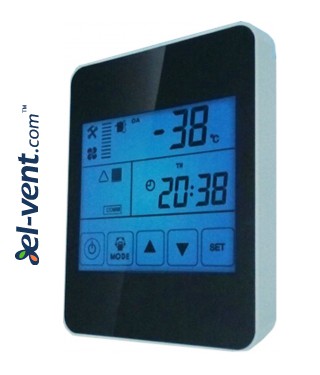

  • equipped with electronic control panel, LCD touch panel ordered separately
  • weekly timer is set for each day by the control panel
  • 10-speed energy saving fans
  • with ANTIFROST - possibility to adjust by the control panel
  • integrated BYPASS system - will help to cool the premises during the warm season (alternate fan speed algorithm)
  • not required condensate drainage - cellulose heat exchanger compensates humidity indoors
  • possibility to connect electric heaters on fresh air and air supply ducts and operate it with control panel
  • possibility to connect CO2 and humidity sensors and control it with LCD touch screen
  • with EU4 class filters, filter dimensions 190 x 1010 mm
  • highly economical, uses only 305 W
  • efficiency 75 %
  • extremely quiet operation 43 dB
  • for mounting on the ceiling
  • 2 years warranty





HRV installation



HRV heat exchanger

Code
A
B
C
D E
F
G
I
M
ERGO1000 1134
1322
85
250 1250
1190
19
678
388



  • SA - supply air
  • RA - room air
  • EA - exhaust air
  • OA - outdor air

HRV control panel and it's measurments, mm

Code
Capacity, m³/h
Enthalpy Efficiency, %
Efficiency, %
Noise level, dB
Voltage, V
Power, W
Weight, kg
Summer
Wintter
ERGO100
1000 71 65 75 43
230
305
83



HDE/CO1 heater connection to the unit electric scheme



Pressure loss and efficiency parameters
