  • 55x110 mm 3.35 € 2.52 € (-24%)
  • 60x120 mm 5.59 € 4.20 € (-24%)
  • 60x204 mm 11.02 € 8.26 € (-25%)
  • 75x150 mm 8.55 € 6.41 € (-25%)
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

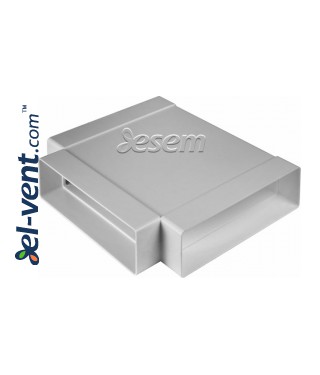

T-piece for plastic duct EKO-P-26

  • EKO-P-26 - T-pieces - external connectors for 55x110, 60x120, 60x204, 75x150 mm plastic ducts
  • manufactured from 1.5 mm thick plastic
  • it is recommended to use adhesive PVC tape for plastic ducts sealing:




Brand: ESEM
Code
A
B
H
EKO-P-55-26
110
55
140
EKO-P-120-26 120 60 -
EKO-P-204-26 204 60 280
EKO-P-75-26 150 75 160





Duct useful area

Type
Ø100 mm
Ø125 mm Ø150 mm 55x110 mm 60x120 mm 60x204 mm 75x150 mm
Useful area
78.50 cm²
122.66 cm² 176.62 cm² 55.64 cm² 68.44 cm² 117.16 cm² 105.84 cm²
