Air distributor for HDPE system Type D

Air distributor type / Ød2 / n / k / d1 type (F - female, M - male):
Price / Ød1, mm:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

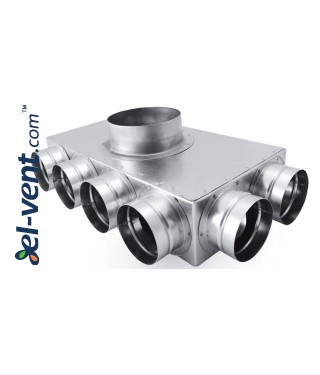

Air distributor for HDPE system Type D

Attention! The positions listed below are keeping in stock, delivered within 14 days.:

  • OSD75/4/4/160M
  • OSDI75/4/4/160M

New - conforms to C-tightness class according to EN12237 standard
Exceptionally simple installation - just plug the duct on the connector!
Types of air distributors, marking
OS - from galvanized steel, n male-connectors - with rubber seal
OSI - from galvanized steel, insulated with 9 mm anti-condensation, noise-reducing insulation, n male-connectors - with rubber seal

Ød1 - upper connector diameter, mm
Ød2 - side connectors diameter, mm
n - Ø75 or 90 mm, the number of connections on the front and/or rear side of the distributor
F - the upper connector - female
M - the upper connector - male

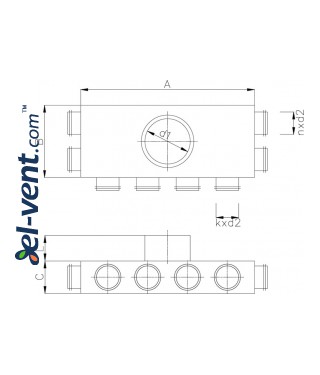

Code
A B C L
d1
n k d2
OSD75/4/4 400 200 90 60 160 4 4 63
OSD75/6/6
600 300 90 60
200
4 4 63
OSD90/4/4 480 240 110 60 160 4 4 75
OSD90/6/6 720 360 110 60 200 6 6 75
