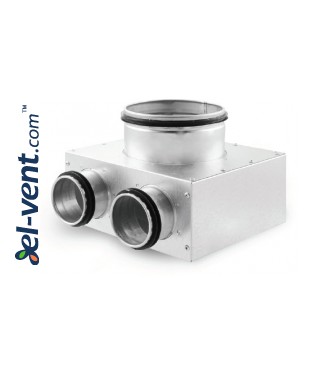

Air distributor for HDPE system Type A

Air distributor type / Ød2 / n / d1 type (F - female, M - male):
Price / Ød1, mm:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

Air distributor for HDPE system Type A

Attention! The positions listed below are keeping in stock, delivered within 14 days.:

  • OSA75/1/100F
  • OSA75/2/125F
  • OSA90/1/100F
  • OSA90/2/125F

New - conforms to C-tightness class according to EN12237 standard

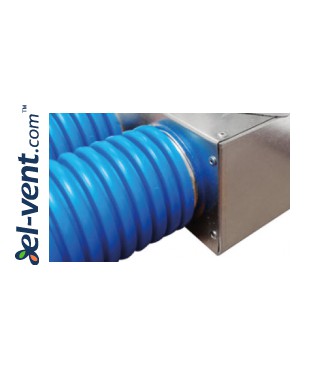

Exceptionally simple installation - just plug the duct on the connector!
Types of air distributors, marking
OS - from galvanized steel, n male-connectors - with rubber seal
OSI - from galvanized steel, insulated with 9 mm anti-condensation, noise-reducing insulation, n male-connectors - with rubber seal

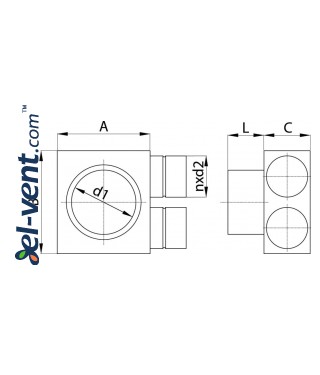

Ød1 - upper connector diameter, mm
Ød2 - side connectors diameter, mm
n - Ø75 or 90 mm, the number of connections on the front and/or rear side of the distributor
F - the upper connector - female
M - the upper connector - male

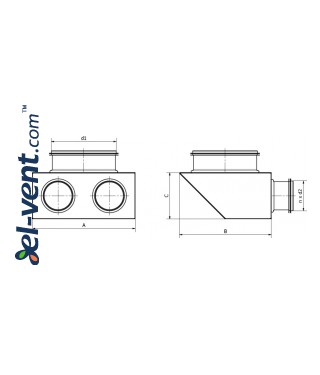

Code
A B C
d1
n d2
OSA75/1 180 200 90 80-160 1 63
OSA75/2
180 200 90
80-160
2 63
OSA75/3 180 300 90 80-160 3 63
OSA90/1 180 200 90 80-160 1 75
OSA90/2 180 200 90 80-160 2 75
OSA90/3 180 300 90 80-160 3 75
