Axial roof fans TXA ≤35500 m³/h

Price / TXA:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

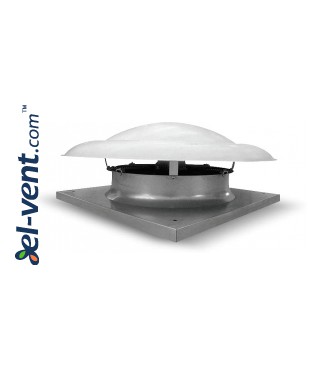

Axial roof fans TXA ≤35500 m³/h

  • TXA - axial roof fans with horizontal outlet to extract air or fumes directly outside or through ducts. Ideal for medium/large sized structures
  • high flow rates with low pressures
  • suitable for industrial environments where is required to extract a big volume of air without ducts such as: warehouses, sheds, parking, greenhouses and breeding, sports facilities, supermarkets and commercial centres, industries
  • ball bearing class F insulation motor IP55 protected
  • max temperature of extracted air 50 °C
  • easy installation
  • case and air conveyor in galvanized steel sheet, cover protection in fibreglass RAL 7038 coloured, equipped with eyebolts for lifting
  • safety protection outside grille
  • double speed through switching star/delta;the most powerfull axial roof fans with to extract air or fumes directly outside or through ducting. Ideal for medium and large buildings
  • in accordance with the essential requirements of 2006/42/EC Directive concerning machines and European Standards UNI EN ISO 13857, UNI EN ISO 12499, CEI EN 60204-1
  • made in Italy
  • 2 years warranty
  • adjustable speed through RGM 2, RGM 4, RGT 1, RGT 2

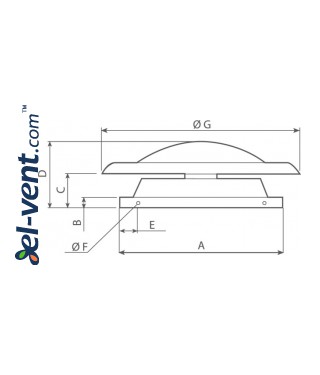

Code A B C D E F G
TXA 40 4T 660 45 138 300 100 12 710
TXA 50 4T 760 50 160 345 100 12 875
TXA 63 4T 890 55 185 362 100 12 1120
TXA 71 6T 950 50 155 409 100 12 1300
TXA 80 6T 1230 50 313 518 185 12 1300
TXA 100 6T 1400 50 335 600 170 12 1600



Code
Voltage, V
Frequency, Hz
N° poles
Capacity, m³/h
Power, W Current, A 400 V Noise level, dB(A)2m Speed, min-1 Weight, kg
TXA40-4T 400 50/60 4 2900/3850 69 0.22/0.59 49/56 900/1400 17
TXA50-4T 400 50/60 4 6250/7750 90 0.61/1.14 59/62 900/1400 25
TXA63-4T 400 50/60 4 11900/13700 69 0.56/1.95 63/67 900/1400 34
TXA71-6T 400 50/60 6 10100/13200 90 0.85/1.73 57/63 700/900 47
TXA80-6T 400 50/60 6 20300/23700 69 2.16/4.17 67/61 700/900 62
TXA100-6T 400 50/60 6 26100/35500 90 3.8/8.2 66/73 700/900 90





Pressure loss diagrams
