Axial fan WO315, Ø315 mm

PRICE:
81.31 €    108.42 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

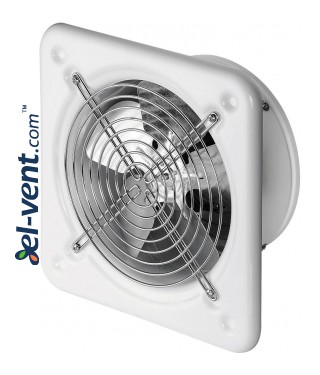

Axial fan WO315, Ø315 mm

  • three speed motor
  • for medium and large room ventilation
  • plastic housing
  • double sided protection grilles
  • fastened with screws (supplied)
  • temperature of extracted air -20 - +40 °C
  • made in Poland
  • 2 years warranty
  • in the outer side of the wall it is recommended to install gravity louvers:

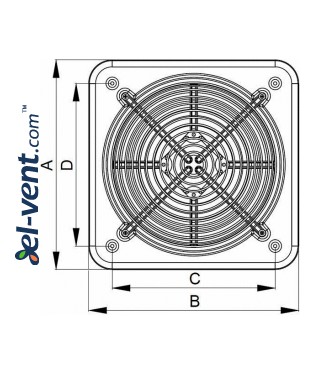

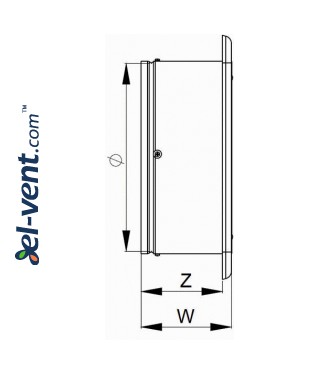

Code
Ø1
Ø2
A
B
X
Y
W
Z
WO200
200
210
220
220
280
280
125
110
WO250 250 260 255 255 330 330 125 110
WO315 315 325 320 320 410 410 125 110



Code Capacity, m3/h Power, W
Pressure, Pa
Noise level, dB Protection class IP
Speed Speed Speed Speed
I II III I II III I II III I II III
WO200 300 325 365 16 21 37 11 21 55 33 35 40 44
WO250 436 450 465 22 30 44 31 48 65.5 40 38 39 44
WO315 650 825 1025 31 43.5 62 7 10.5 23 36 40 46 44



We recommend to control speed by:

1. speed controller RG 5





2. three step fan speed controller SMT-1-30-4C



Connection to the power supply
