Mini recuperators Tempero100, Ø100 mm

* Price / Tempero:
PRICE:
222.24 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

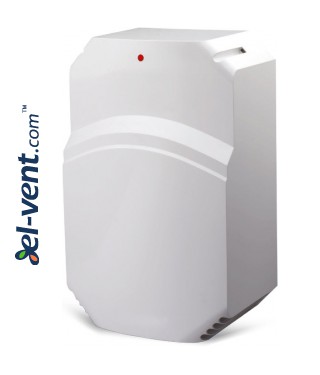

Mini recuperators Tempero100, Ø100 mm

  • energy recovery up to 75 %
  • ideal for domestic applications and suitable for single room
  • wall and/or panel mounting, it is highly recomended to use Tempero SP adapter for reduced thickness walls

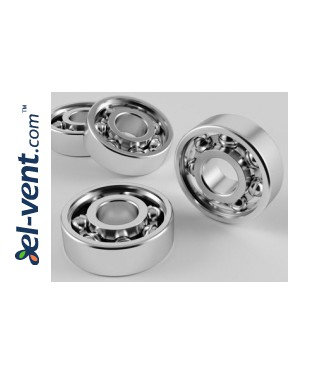

  • ball bearing motor
  • heat exchanger in PVC welded plates
  • twin centrifugal fan
  • polyurethane filters to grant higher protection and long life
  • pre-heating system (PH model) consists of a 240 W heating element with thermostat fitted in the inlet duct made of self extinguishing material, working temperature -25 °C - +35 °C
  • Base, Timer and Pre-heated for cold climates model options
  • the optional RG 5 controller allows ON/OFF operation and speed control on the base version
  • the optional RG E PH controller additionally allows to regulate the power of the electrical resistance on the PH version
  • case and internal components in ABS white material
  • high performance in terms of energy recovery, consumption, flow rate and sound level
  • in accordance with Standard EN 60335-2-80
  • made in Italy - O.ERRE
  • 2 years warranty

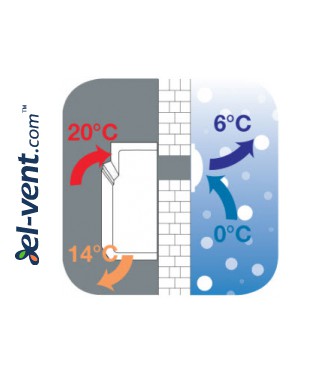

How it works:

one fan extracts air directly outside, the other one takes the external air and pushes it into the room. During this process the incoming and outgoing airflows (completely separate) cross the heat exchanger made of PVC alveolar overlapped and welded plates: the extracted airflow transfers thermal energy to the incoming fresh air by reducing energy requirements for heating (or air conditioning) the room.
TEMPERO can be easily installed on new or exisiting Ø100-120 mm duct. It can also replace an existing fan previously installed. It is supplied with the PVC duct for intake (Ø63 mm, 400 mm lenght) to be fitted inside the existing ducting; in case of walls with more than 400 mm thickness a similar duct having same diameter and more lenght can be used. Ducts of considerable length cause decrease of performance.

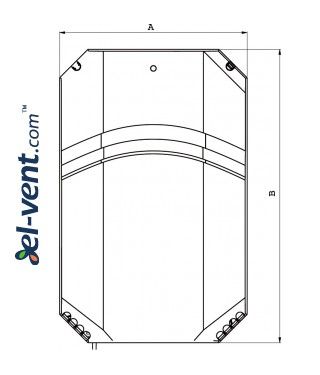

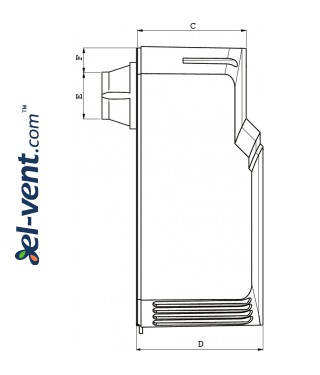

Construction:

Code
A B C D Ø E F
Tempero100
257 400 155 179 95 23
Tempero100T 257 400 155 179 95 23
Tempero100PH 257 400 155 179 95 23





Main parameters

Code
Ø, mm
Voltage, V at 50 Hz
Power, W
Flow rate "Out", m3/h Flow rate "In",   m3/h Max. pressure, Pa Noise level, dB Protection class Weight, kg Working temperature, °C
Tempero100
100-120
220-240
40 70 60 100 34 IPX4 3.3 -5 - +35
Tempero100T 100-120 220-240 40 70 60 100 34 IPX4 3.3 -5 - +35
Tempero100PH 100-120 220-240 250 70 60 100 34 IPX4 3.3 -25 - +35



Download the installation guide



Parameters with RG 5 controller

Speed
I II III IV V
Voltage, V 110 130 160 195 230
Speed, min-1
600 880 1390 2230 2490
Flow rate "Out", m3/h 17 24.7 39.1 62.7 70
Flow rate "In", m3/h 14.5 19.3 33.5 53.8 60
Noise level, dB - - 22 31.6 34
Power, W 10.2 14.3 21.7 30.5 41.1



Speed controllers RG 5 and RG E PH





Pressure loss diagrams

extraction



intake
