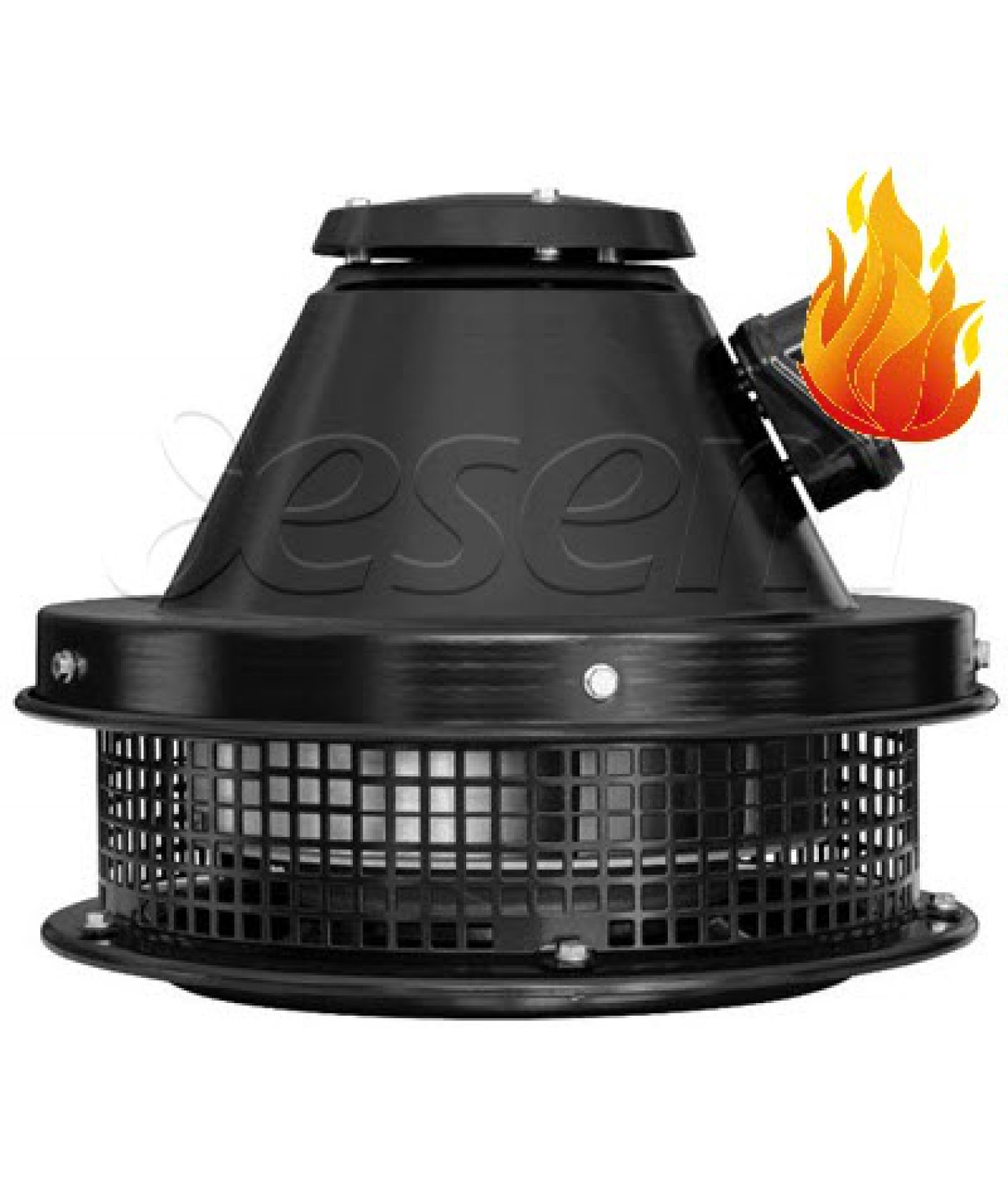

Roof fans for hot air HEAT ≤1965 m³/h
- HEAT - roof fans for blowing hot air, smoke or steam
- grease filters must be fitted when connecting to cooker hoods
- protection class IP44
- steel housing with corrosion resistant powder coating
- fan impeller separated from the motor
- low sound level compared with high performance
- motor speed can be regulated through speed controllers
- suitable for domestic, commercial and industrial environments
- max. temperature of extracted air 120 °C
- 2 years warranty
- Attention! If you want to install the fan on the cooker hood, you must install special filters before the fan to fully clean the contaminated air. These fans are designed to transport clean air. If the fan is installed without filters, the fan is not covered by the warranty.
Brand: ESEM

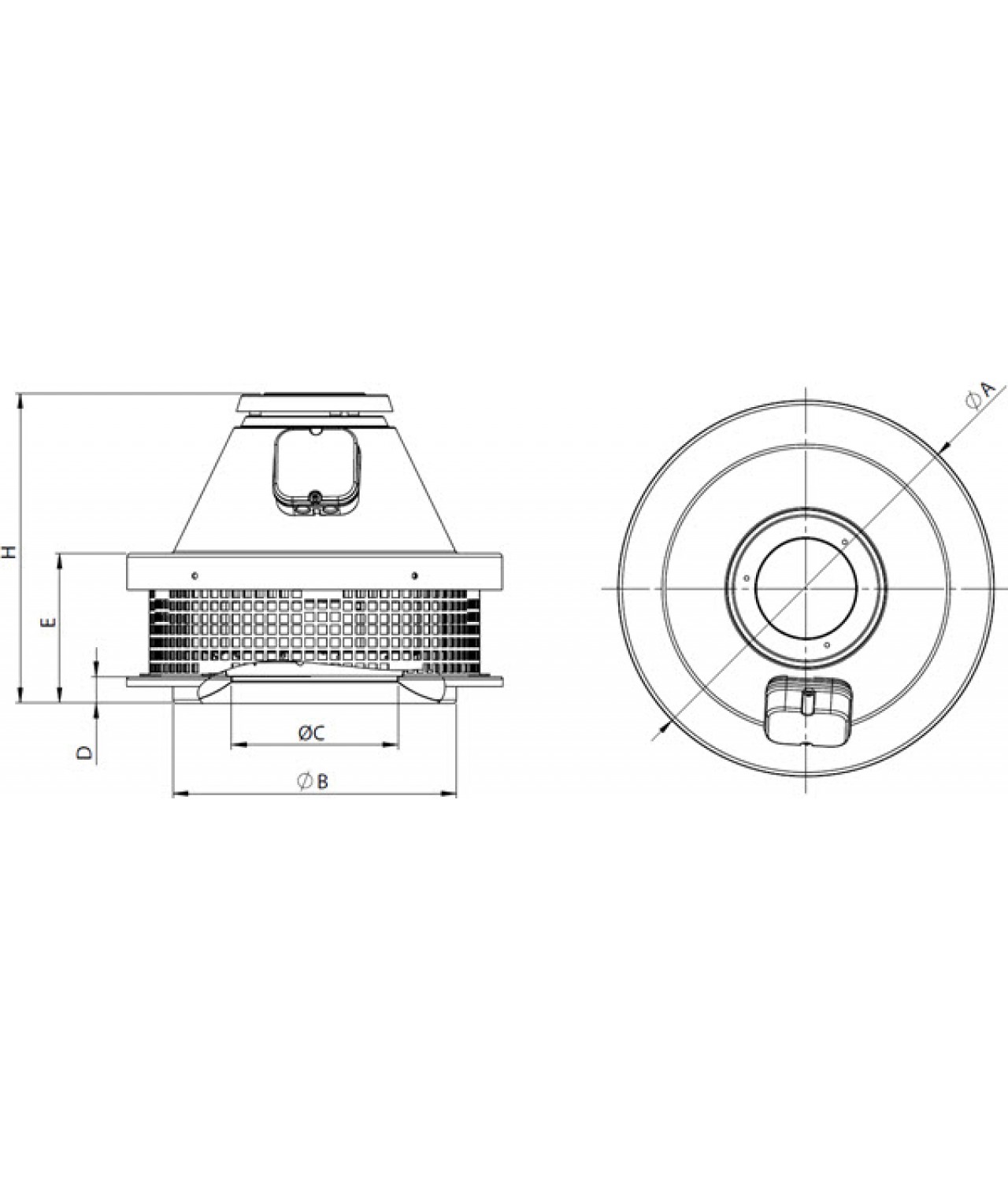

| Code (BRCF-M) |
A
|
B
|
C
|
D
|
E | H |
| HEAT315 | 411 | 310 | 180 | 30 | 164 | 340 |
|
Code HEAT
|
Voltage, V | Frequency, Hz | Power, W | Current, A | Capacitor, μF | Speed, min-1 | Capacity, m³/h | Noise level, dB(A) | Insulation class | Weight, kg |
| 315 | 230 | 50/60 | 185/280 | 0.82/1.23 | 5 | 2730/2980 | 1800/1965 | 56/48 | F | 11.3 |
