ISO-HDPE - thermal insulation for semi rigid ducts
| ISO-HDPE / Price: |
Select
|
Qty.:
European delivery - 30 days, other countries +7 days.
Ask a question about this item
Ask a question about this item

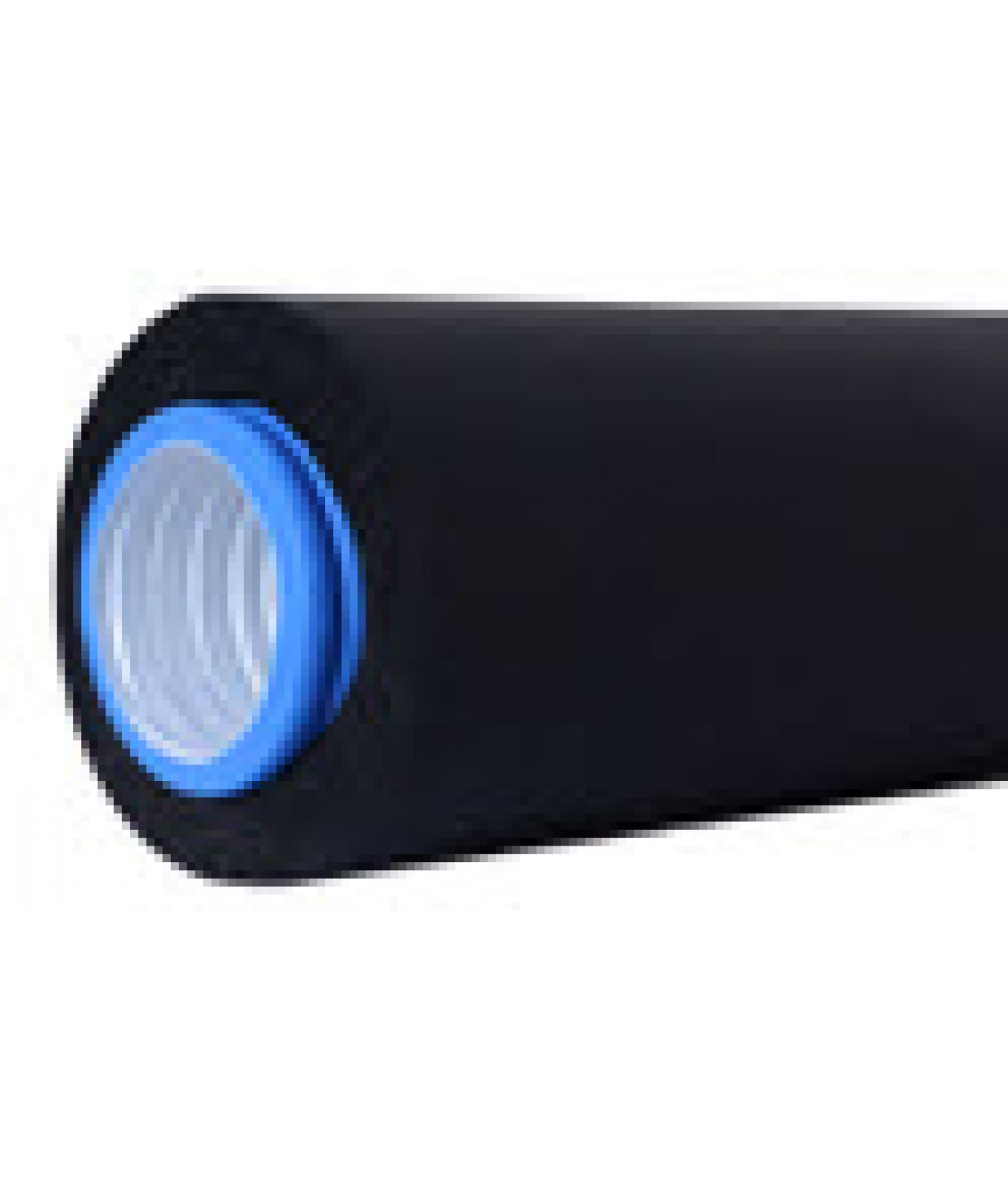

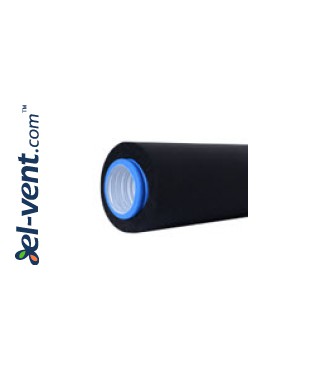

ISO-HDPE - thermal insulation for semi rigid ducts
Attention! ISO75/19HDPE are always on the stock, other types delivery time - 30 days
- price for 2 m lenght piece
- designed for HDPE semi rigid ducts insulation
- with very low thermal and noise conductivity, high resistance to water vapor diffusion coefficient, excellent protection against corrosion
- manufactured in accordance with EN14303
- operating temperature from -50 °C to +110 °C
- resistance to diffusion of water vapor - μ ≥ 7.000
- thermal conductivity
Mounting
- insulated surfaces should be clean, dry and degreased
- it is highly recommended to seal all seams with adhesive tape not narrower than 50 mm wide
- the product can not be affected by the load
Brand: ESEM
|
Code
|
Lenght, mm
|
Ø inner, mm
|
Ø outer, mm
|
|
ISO75/09HDPE
|
2000
|
75 | 93 |
| ISO90/09HDPE | 2000 | 90 | 108 |
| ISO75/13HDPE | 2000 | 75 | 101 |
| ISO90/13HDPE | 2000 | 90 | 116 |
| ISO75/19HDPE | 2000 | 75 | 113 |
| ISO90/19HDPE | 2000 | 90 | 128 |
