Air distributor for HDPE system Type G

Air distributor type / Ød2 / n / d1 type (F - female, M - male):
Price / Ød1, mm:
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

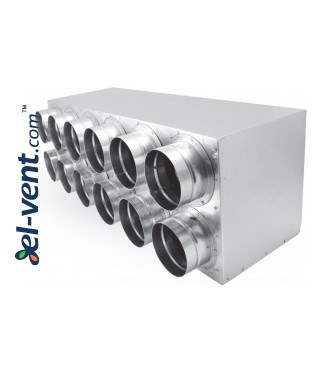

Air distributor for HDPE system Type G

Attention! The positions listed below are keeping in stock, delivered within 14 days.:

  • OSGI75/6/160M - insulated with 9 mm anti-condensation, noise-reducing insulation
  • OSGI75/10/200M - insulated with 9 mm anti-condensation, noise-reducing insulation
  • OSGI75/12/200M - insulated with 9 mm anti-condensation, noise-reducing insulation
  • OSGI75/14/200M - insulated with 9 mm anti-condensation, noise-reducing insulation
  • OSGI90/6/160M - insulated with 9 mm anti-condensation, noise-reducing insulation
  • OSG90/12/200M

Types of air distributors, marking
OS - from galvanized steel, n female-connectors - with rubber seal
OSI - from galvanized steel, insulated with 9 mm anti-condensation, noise-reducing insulation, n female-connectors - with rubber seal

Ød1 - upper connector diameter, mm
Ød2 - side connectors diameter, mm
n - Ø75 or 90 mm, the number of connections on the front and/or rear side of the distributor
F - the upper connector - female
M - the upper connector - male

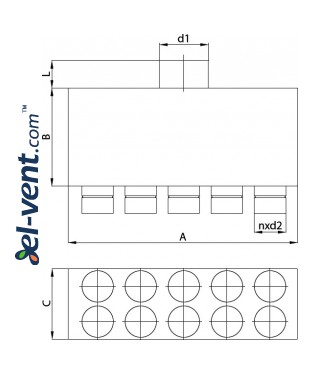

Code
A B C L
d1
n d2
OSG75/10 500 180 230 60 200 10 75
OSG75/12
600 180 230 60
200
12 75
OSG75/14 700 180 230 60 200 14 75
OSG90/10 600 200 240 60 200 10 90
OSG90/12 720 200 240 60 200 12 90
OSG90/14 840 200 240 60 200 14 90
