Air distributor for HDPE system Type F

Air distributor type / Ød2 / n / k / d1 type (F - female, M - male):
Price / Ød1, mm:
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

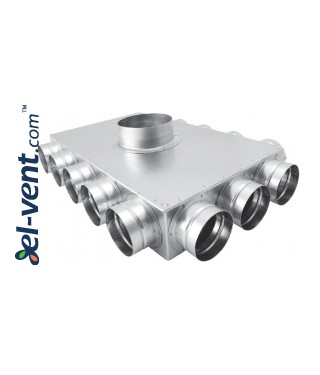

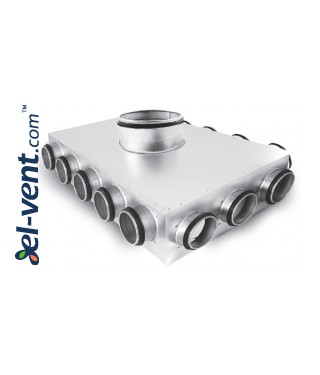

Air distributor for HDPE system Type F

Attention! The positions listed below are keeping in stock, delivered within 14 days.:

  • OSF75/6/12/200M

Types of air distributors, marking
OS - from galvanized steel, n and k female-connectors - with rubber seal
OSI - from galvanized steel, insulated with 9 mm anti-condensation, noise-reducing insulation, n and k female-connectors - with rubber seal

Ød1 - upper connector diameter, mm
Ød2 - side connectors diameter, mm
n - Ø75 or 90 mm, the number of connections on the left and right side of the distributor
k - Ø75 or 90 mm, the number of connections on the front side of the distributor
F - the upper connector - female
M - the upper connector - male

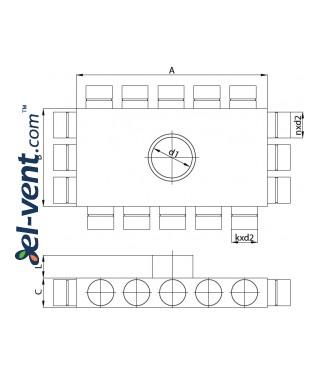

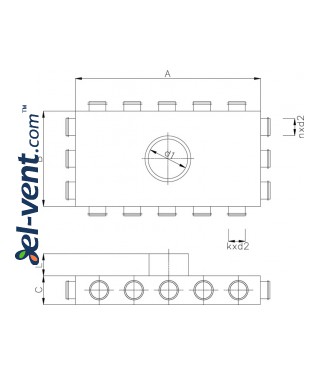

Code
A B C L
d1
n k d2
OSF75/6/10 500 300 90 60 200 6 10 75
OSF75/6/12
600 300 90 60
200
6 12 75
OSF90/6/10 600 360 110 60 200 6 10 90
OSF90/6/12 720 360 110 60 200 6 12 90
