Plastic ducts PO, L=5 m

Price / Ød, mm:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

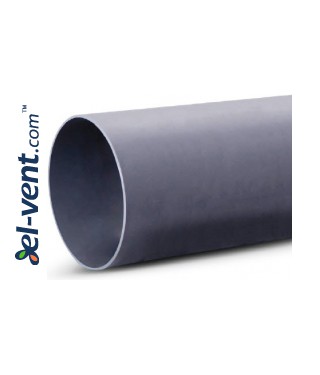

Plastic ducts PO, L=5 m

Attention! Delivery of this product possible only to JSC "ESEM" warehouse in Kaunas, Lithuania.

  • are widely used in many areas and sectors, chemical industry, laboratories, hospitals and other special purpose premises
  • made of PVC plastic
  • has a high resistance to organic acids, alkalis, corrosion
  • best working temperature 0 - +60 °C
  • produced according to DIN 8062 standard
  • 5 m price (standard length - 5 m)
  • as to order less than 5 m
  • for connections use a special glue
  • can be produced and in larger diameters than Ø500 mm
  • by special order can be manufactured from:
  • PP - polypropylene - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +80 °C, DIN 8077 standard
  • PPs - polyphenylene sulphide - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PP-EL-s - polyphenylene sulfide - electrically conductive, especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PE - polyethylene - especially mechanically strong, resistant to water vapor, UV light, the best properties at -50 - +70 °C, DIN 8074 standard
  • PVDF - polyvinylidene fluoride - especially mechanically strong, highly chemically and thermally resistant as well as UV rays, the best properties at -30 - +120 °C, DIN EN ISO 10931 standard
Ød (outer)
PVC
PPs L
75
1.8
3.0
5000
90 1.8 3.0 5000
110 1.8 3.0 5000
125 1.8 3.0 5000
140 1.8 3.0 5000
160 1.8 3.0 5000
180 1.8 3.0 5000
200 1.8 3.0 5000
225 - 3.5 5000
250 2.0 3.5 5000
280 2.3 4.0 5000
315 2.5 5.0 5000
355 2.9 5.0 5000
400 3.2 6.0 5000
450 3.6 6.0 5000
500 4.0 6.0 5000
560 5.0 6.0 5000
630 5.0 6.0 5000
700 6.0 6.0 5000
710 6.0 5.0 5000
800 8.0 8.0 5000
