End caps for plastic ducts POA

Price / Ød, mm:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

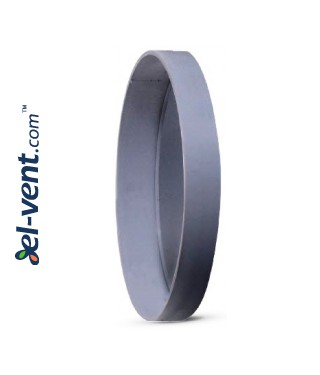

End caps for plastic ducts POA

  • are widely used in many areas and sectors, chemical industry, laboratories, hospitals and other special purpose premises
  • made of PVC plastic
  • has a high resistance to organic acids, alkalis, corrosion
  • best working temperature 0 - +60 °C
  • produced according to DIN 8062 standard
  • for connections use a special glue
  • can be produced and in larger diameters than Ø500 mm
  • by special order can be manufactured from:
  • PP - polypropylene - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +80 °C, DIN 8077 standard
  • PPs - polyphenylene sulphide - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PP-EL-s - polyphenylene sulfide - electrically conductive, especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PE - polyethylene - especially mechanically strong, resistant to water vapor, UV light, the best properties at -50 - +70 °C, DIN 8074 standard
  • PVDF - polyvinylidene fluoride - especially mechanically strong, highly chemically and thermally resistant as well as UV rays, the best properties at -30 - +120 °C, DIN EN ISO 10931 standard
Ød
PVC, PVC/W (white)
PE, PP, PPs, PP-EL-s, PVDF
L S L S
75
25 3.0 25 3.0
90 25 3.0 25 3.0
110 25 3.0 25 3.0
125 25 3.0 25 3.0
140 25 3.0 25 3.0
160 25 3.0 25 3.0
180 25 3.0 25 3.0
200 25 3.0 25 3.0
225 25 3.0 25 3.0
250 25 3.0 25 3.0
280 25 3.0 25 3.0
315 25 3.0 25 3.0
355 25 3.0 25 3.0
400 25 3.0 25 3.0
450 25 3.0 25 3.0
500 30 6.0 30 6.0
560 - - 40 6.0
600 40 6.0 40 6.0
630 - - 40 6.0
700 40 8.0 40 8.0
710 - - 40 8.0
800 50 8.0 50 8.0
