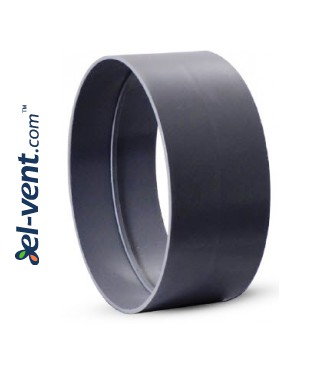

Couplings for plastic ducts POM

Price / Ød, mm:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

Couplings for plastic ducts POM

  • are widely used in many areas and sectors, chemical industry, laboratories, hospitals and other special purpose premises
  • made of PVC plastic
  • has a high resistance to organic acids, alkalis, corrosion
  • best working temperature 0 - +60 °C
  • produced according to DIN 8062 standard
  • for connections use a special glue
  • can be produced and in larger diameters than Ø500 mm
  • by special order can be manufactured from:
  • PP - polypropylene - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +80 °C, DIN 8077 standard
  • PPs - polyphenylene sulphide - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PP-EL-s - polyphenylene sulfide - electrically conductive, especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PE - polyethylene - especially mechanically strong, resistant to water vapor, UV light, the best properties at -50 - +70 °C, DIN 8074 standard
  • PVDF - polyvinylidene fluoride - especially mechanically strong, highly chemically and thermally resistant as well as UV rays, the best properties at -30 - +120 °C, DIN EN ISO 10931 standard
Ød
PVC, PVC/W (white)
PE, PP, PPs, PP-EL-s, PVDF
L / L1 tolerance S L / L1 tolerance S
75
40 / 85 0.3 2.5 40 / 85 0.7 3.0
90 40 / 85 0.3 2.5 40 / 85 0.9 3.0
110 40 / 85 0.3 2.5 40 / 85 1.0 3.0
125 40 / 85 0.3 2.5 40 / 85 1.2 3.0
140 40 / 85 0.4 2.5 40 / 85 1.3 3.0
160 40 / 85 0.4 2.5 40 / 85 1.5 3.0
180 40 / 85 0.4 2.5 40 / 85 1.7 3.0
200 40 / 85 0.4 2.5 40 / 85 1.8 3.0
225 40 / 85 0.5 2.5 40 / 85 1.9 3.5
250 40 / 85 0.5 2.5 40 / 85 2.0 3.5
280 50 / 105 0.6 2.5 50 / 105 2.2 3.5
315 50 / 105 0.5 2.5 50 / 105 2.4 4.0
355 50 / 105 0.7 3.0 50 / 105 2.7 4.0
400 50 / 105 0.7 3.0 50 / 105 3.0 4.5
450 55 / 120 0.8 5.0 55 / 120 3.5 5.0
500 55 / 120 0.9 5.0 55 / 120 4.0 5.0
560 - - - 55 / 120 4.5 6.0
600 55 / 120 1.0 6.0 55 / 120 4.5 6.0
630 - - - 55 / 120 4.5 6.0
700 70 / 150 2.5 6.0 70 / 150 4.5 6.0
710 - - - 80 / 170 4.5 6.0
800 80 / 170 3.0 8.0 80 / 170 4.5 8.0
