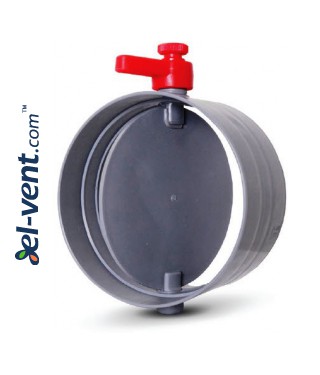

Air dampers for plastic ducts POR

  • are widely used in many areas and sectors, chemical industry, laboratories, hospitals and other special purpose premises
  • made of PVC plastic
  • has a high resistance to organic acids, alkalis, corrosion
  • best working temperature 0 - +60 °C
  • produced according to DIN 8062 standard
  • for connections use a special glue
  • can be produced and in larger diameters than Ø500 mm
  • by special order can be manufactured from:
  • PP - polypropylene - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +80 °C, DIN 8077 standard
  • PPs - polyphenylene sulphide - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PP-EL-s - polyphenylene sulfide - electrically conductive, especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PE - polyethylene - especially mechanically strong, resistant to water vapor, UV light, the best properties at -50 - +70 °C, DIN 8074 standard
  • PVDF - polyvinylidene fluoride - especially mechanically strong, highly chemically and thermally resistant as well as UV rays, the best properties at -30 - +120 °C, DIN EN ISO 10931 standard
Ød
PVC, PVC/W (white)
PE, PP, PPs, PP-EL-s, PVDF
L / L1 tolerance S L / L1 tolerance S
75
40 / 40 0.3 2.5 40 / 40 0.7 3.0
90 40 / 40 0.3 2.5 40 / 40 0.9 3.0
110 40 / 40 0.3 2.5 40 / 40 1.0 3.0
125 40 / 40 0.3 2.5 40 / 40 1.2 3.0
140 40 / 40 0.4 2.5 40 / 40 1.3 3.0
160 40 / 40 0.4 2.5 40 / 40 1.5 3.0
180 40 / 40 0.4 2.5 40 / 40 1.7 3.5
200 40 / 40 0.5 2.5 40 / 40 1.8 3.5
225 40 / 40 0.5 2.5 40 / 40 1.9 3.5
250 40 / 40 0.5 2.5 40 / 40 2.0 3.5
280 50 / 40 0.6 2.5 50 / 40 2.2 3.5
315 50 / 40 0.6 2.5 50 / 40 2.4 4.0
355 50 / 40 0.7 3.0 50 / 40 2.4 4.0
400 50 / 40 0.7 3.0 50 / 40 2.4 4.5
450 60 / 320 0.8 3.6 60 / 320 3.5 5.0
500 60 / 360 0.9 4.0 60 / 360 4.0 5.0
560 - - - 70 / 410 4.5 6.0
600 70 / 450 1.0 5.0 70 / 450 4.5 6.0
630 - - - 70 / 480 4.5 8.0
700 70 / 520 2.5 6.0 80 / 520 4.5 8.0
710 - - - 80 / 530 4.5 8.0
800 80 / 560 3.0 8.0 80 / 560 4.5 8.0
