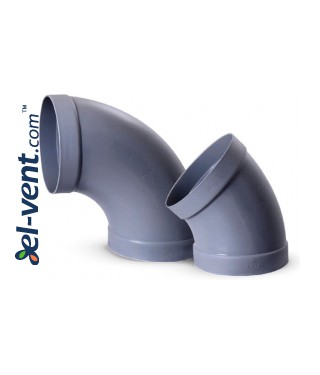

90° plastic ducts elbows PO90

Characteristics

  • are widely used in many areas and sectors, chemical industry, laboratories, hospitals and other special purpose premises
  • made of PVC plastic
  • has a high resistance to organic acids, alkalis, corrosion
  • best working temperature 0 - +60 °C
  • produced according to DIN 8062 standard
  • for connections use a special glue
  • can be produced and in larger diameters than Ø500 mm
  • by special order can be manufactured from:
  • PP - polypropylene - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +80 °C, DIN 8077 standard
  • PPs - polyphenylene sulphide - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PP-EL-s - polyphenylene sulfide - electrically conductive, especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PE - polyethylene - especially mechanically strong, resistant to water vapor, UV light, the best properties at -50 - +70 °C, DIN 8074 standard
  • PVDF - polyvinylidene fluoride - especially mechanically strong, highly chemically and thermally resistant as well as UV rays, the best properties at -30 - +120 °C, DIN EN ISO 10931 standard



Dimensions, mm

Ød
PVC, PVC/W (white)
PE, PP, PPs, PP-EL-s, PVDF
L tolerance min. S L tolerance min. S
75
40 0.3 1.8 40
0.7
3.0
90 40 0.3 1.8 40 0.9 3.0
110 40 0.3 1.8 40 1.0 3.0
125 40 0.3 1.8 40 1.2 3.0
140 40 0.4 1.8 40 1.3 3.0
160 40 0.4 1.8 40 1.5 3.0
180 40 0.4 1.8 40 1.7 3.0
200 40 0.4 1.8 40 1.8 3.0
225 40 0.5 1.8 40 1.9 3.5
250 40 0.5 2.0 40 2.0 3.5
280 50 0.6 2.3 50 2.2 3.5
315 50 0.6 2.5 50 2.4 4.0
355 50 0.7 2.9 50 2.7 4.0
400 50 0.7 3.2 50 3.0 4.5
450 50 0.8 3.6 50 3.5 5.0
500 50 0.9 4.0 50 4.0 5.0
560 - - - 60 4.5 5.0
600 60 1.0 6.0 60 4.5 6.0
630 - - - 70 4.5 6.0
700 70 2.5 6.0 70 4.5 6.0
710 - - - 80 4.5 6.0
800 80 3.0 8.0 80 4.5 8.0

Brand: ESEM
