Price / Actuator:
Select
  • DM/ML/06/230, 230 V, 6 Nm 116.97 € 76.10 € (-34%)
  • DM/ML/06/24, 24 V, 6 Nm 112.92 € 73.40 € (-34%)
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

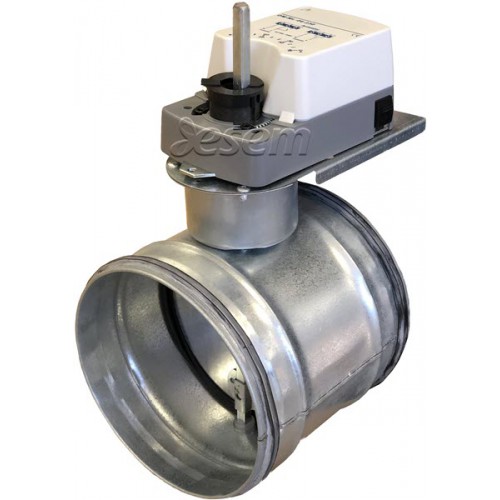

Air damper actuator DAMPER A

  • for adjusting the air flow damper control in HVAC systems
  • recommended max diameter of air valves Ø400 mm
  • two positions - fully closed or fully opened
  • mount with screws (supplied)
  • made in Poland
  • 2 years warranty

Brand: Alnor

Code
DM
Voltage, V
Frequency, Hz
Power, W
Torque, Nm
Noise level, dB
Protection class IP
Max. ambient temperature, °C Weight, kg
ML06/230
230 ± 20%
50/60
3.2
6
45
44
-20 - +50 0.7
ML/06/24 24 50/60 2.0 6 45 44 -20 - +50 0.7
