Ventilation caps POK

Price / Ød, mm:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

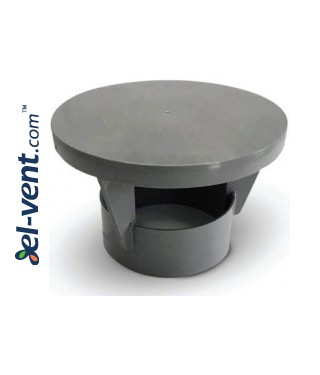

Ventilation caps POK

  • are widely used in many areas and sectors, chemical industry, laboratories, hospitals and other special purpose premises
  • made of PVC plastic
  • has a high resistance to organic acids, alkalis, corrosion
  • best working temperature 0 - +60 °C
  • produced according to DIN 8062 standard
  • for connections use a special glue
  • can be produced and in larger diameters than Ø500 mm
  • by special order can be manufactured from:
  • PP - polypropylene - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +80 °C, DIN 8077 standard
  • PPs - polyphenylene sulphide - especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PP-EL-s - polyphenylene sulfide - electrically conductive, especially mechanically strong, resistant to solvents, alcohol, best properties at 0 - +90 °C, DIN 8077 standard
  • PE - polyethylene - especially mechanically strong, resistant to water vapor, UV light, the best properties at -50 - +70 °C, DIN 8074 standard
  • PVDF - polyvinylidene fluoride - especially mechanically strong, highly chemically and thermally resistant as well as UV rays, the best properties at -30 - +120 °C, DIN EN ISO 10931 standard
Ød
PVC, PVC/W (white)
PE, PP, PPs, PP-EL-s, PVDF
L H / H1 ØB S L H / H1 ØB S
75
40 165 / 55 160 8.0 40 165 / 55 160 8.0
90 40 165 / 55 200 8.0 40 165 / 55 200 8.0
110 40 165 / 55 225 8.0 40 165 / 55 225 8.0
125 40 175 / 65 225 8.0 40 175 / 65 225 8.0
140 40 180 / 70 250 8.0 40 180 / 70 250 8.0
160 40 190 / 80 250 8.0 40 190 / 80 250 8.0
180 40 200 / 90 280 8.0 40 200 / 90 280 8.0
200 40 210 / 100 315 8.0 40 210 / 100 315 8.0
225 40 225 / 115 355 8.0 40 225 / 115 355 8.0
250 40 235 / 125 400 8.0 40 235 / 125 400 8.0
280 50 275 / 165 450 10.0 50 275 / 165 450 10.0
315 50 295 / 185 500 10.0 50 295 / 185 500 10.0
355 50 305 / 195 550 10.0 50 305 / 195 550 10.0
400 50 335 / 225 600 10.0 50 335 / 225 600 10.0
450 50 375 / 225 650 10.0 50 375 / 225 650 10.0
500 50 395 / 275 700 10.0 50 395 / 275 700 10.0
560 - - - - 60 425 / 305 750 10.0
600 60 480 / 340 800 10.0 60 480 / 340 800 10.0
630 - - - - 70 540 / 425 850 10.0
700 70 585 / 425 900 10.0 70 585 / 425 900 10.0
710 - - - - 70 605 / 425 900 10.0
800 80 605 / 425 1000 10.0 80 605 / 425 1000 10.0
