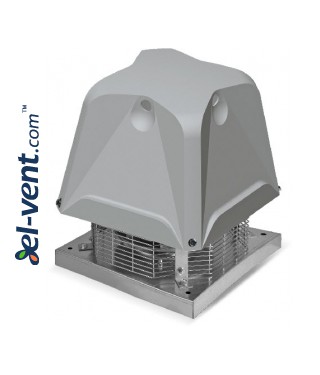

Centrifugal roof fans TXC ≤18800 m³/h

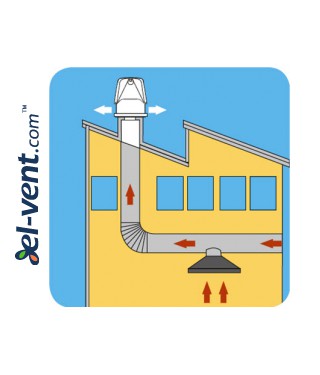

  • TXC - the most powerfull centrifugal roof fans to extract air or fumes directly outside or through ducting. Ideal for medium and large buildings
  • suitable for industrial applications, such as restaurants, sport facilities, supermarkets and shopping centers, factories, warehouses, offices and apartment buildings
  • motor impeller with external rotor, statically and dynamically balanced
  • equipped with a ball bearing class F insulation motor, IP55 protected
  • max temperature of extracted air  60 °C
  • zinc-plated steel frame and impeller, cover made of plastic material
  • zinc plated steel frame complete with plastic cover
  • safety protection outside grille
  • self-cleaning backward curved blade impeller, statically and dynamically balanced
  • in accordance with the essential requirements of 2006/42/EC Directive concerning machines and European Standards UNI EN ISO 13857, UNI EN ISO 12499, CEI EN 60204-1
  • made in Italy
  • 2 years warranty
  • adjustable speed through RGM 2, RGM 4, RGT 1, RGT 2:





    RGM 2 (TXP 3M, TXP 6M):



    RGM 4 (TXP 7M, TXP 8M, TXP 10M):



    RGT 1 (TXP 3T, TXP 6T, TXP 7T):



    RGT 2 (TXP 8T, TXP 10T):

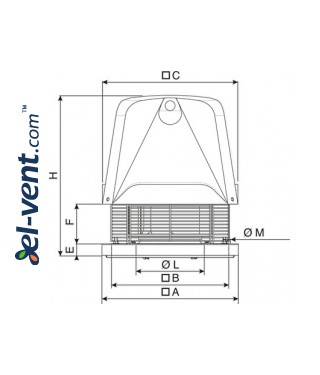

Code
AxA
BxB
CxC
E
F
H
ØL ØM
TXP3 400 350 412 40 135 493 200 11.2
TXP6 400 350 412 40 135 493 250 11.2
TXP7 560 460 560 40 240 608 350 11.2
TXP8 560 460 560 40 240 608 350 11.2
TXP10 710 610 740 40 253 638 400 11.2
TXP12 900 800 950 40 305 910 500 11.2
TXP14 900 800 950 45 300 910 550 11.2
TXP15 900 800 950 45 300 910 600 11.2
TXP18 900 800 950 45 300 910 600 11.2







Code
Voltage, V
Frequency, Hz
N° poles
Capacity, m³/h
Pressure, Pa
Power, W Current, A 230 V Current, A 400 V Noise level, dB(A)2m Speed, min-1 Weight, kgg
TXP 3M 230 50/60 4 1200 196 120 0.81 - 60 1400 14
TXP 6M 230 50/60 4 1800 294 180 1.05 - 66 1400 18
TXP 7M 230 50/60 4 3100 392 250 1.40 - 69 1400 25
TXP 8M 230 50/60 4 4200 441 370 1.90 - 70 1400 30
TXP 10M 230 50/60 4 5700 549 750 3.40 - 75 1400 30
TXP 3T 230/400 50/60 4 1200 196 120 0.8 0.47 60 1400 40
TXP 6T 230/400 50/60 4 1800 294 180 1.05 0.60 66 1400 14
TXP 7T 230/400 50/60 4 3100 392 250 1.42 0.82 69 1400 18
TXP 8T 230/400 50/60 4 4200 441 370 1.90 1.10 70 1400 25
TXP 10T 230/400 50/60 4 5700 549 750 3.40 1.80 75 1400 30
TXP 12T 230/400 50/60 6 7100 382 750 3.81 2.20 71 900 40
TXP 14T 230/400 50/60 6 10800 471 1100 5.37 3.10 75 900 57
TXP 15T 230/400 50/60 6 14200 559 2200 9.35 5.40 80 900 76
TXP 18T 230/400 50/60 6 18800 637 3000 11.95 6.90 84 900 110





Pressure loss diagrams
