Quiet duct fan Silent200, Ø200 mm

PRICE:
178.62 €    238.16 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

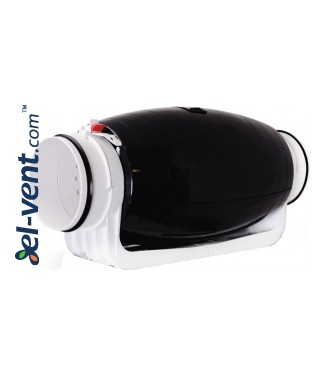

Quiet duct fan Silent200, Ø200 mm

  • with ball bearings
  • two speeds
  • for mounting with Ø200 mm duct system
  • insulated housing made from mechanically durable plastic
  • with mounting bracket
  • with connection cable
  • working temperature -20 °C - +60 °C
  • made in Poland
  • 2 years warranty
  • it is recommended to control the speed through the three-speed controller (if the fan has two speeds, use the first two connection terminals in speed controller):



  • it is recomended to install fan with sealing clamps:







impeller



backflow valve



perforated inner side of the housing



separate wiring box



mounting brackets

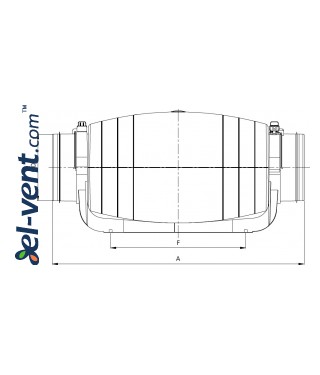

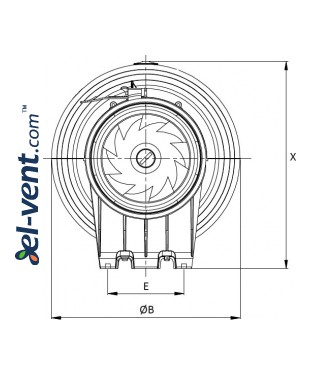

Code
X
A
ØB
ØD
E
F
Silent200
301
567
262
198
128
339
Code
I capacity, m³/h
II capacity, m³/h
Electric current, A
Power, W
 Noise level, dB
Speed, min-1
Protection class IP
Silent200
690
840
0.58
135 / 140
29 / 35
1950 / 2450
44


Pressure loss diagram
