Quiet duct fan Silent150/160, Ø150-160 mm

PRICE:
137.60 €    183.47 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

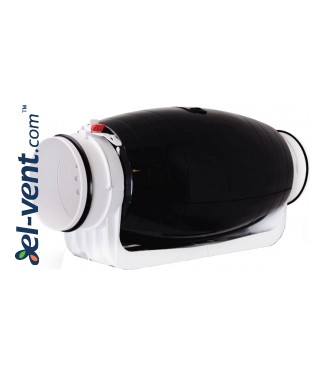

Quiet duct fan Silent150/160, Ø150-160 mm

  • with ball bearings
  • two speeds
  • for mounting with Ø150-160 mm duct system
  • insulated housing made from mechanically durable plastic
  • with mounting bracket
  • with connection cable
  • working temperature -20 °C - +60 °C
  • made in Poland
  • 2 years warranty
  • it is recommended to control the speed through the three-speed controller (if the fan has two speeds, use the first two connection terminals in speed controller):

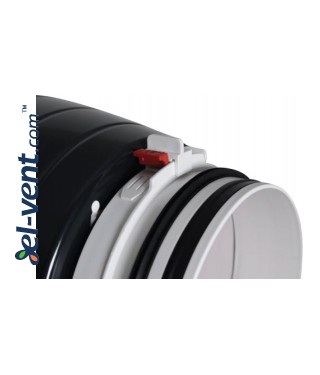

  • it is recomended to install fan with sealing clamps:







impeller



backflow valve



perforated inner side of the housing



separate wiring box



mounting brackets

Code
X
A
ØB
ØD
E
F
Silent150/160
244
488
221
148 / 158
95
251
Code
I capacity, m³/h
II capacity, m³/h
Electric current, A
Power, W
 Noise level, dB
Speed, min-1
Protection class IP
Silent150/160
410
530
0.20 / 0,25
43 / 50
26 / 31
1850 / 2550
44


Pressure loss diagram
