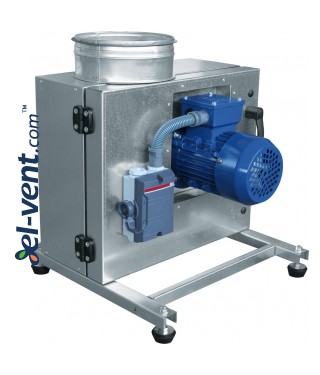

Kitchen fans EFT120 ≤5236 m³/h

  • EFT120 - 3 phase centrifugal fans designed for hot, smoky air exhaust from kitchens
  • direction of the door opening can easily be changed from left to right
  • the housing and impeller are made from galvanized steel sheet
  • the housing is made with antivibration connections
  • the housing is insulated with 50 mm mineral wool
  • maximum air temperature - 120 oC
  • motor protection class - IP54
  • speed can be adjusted by fequency converter
  • made in Lithuania
  • 2 years warranty
Code

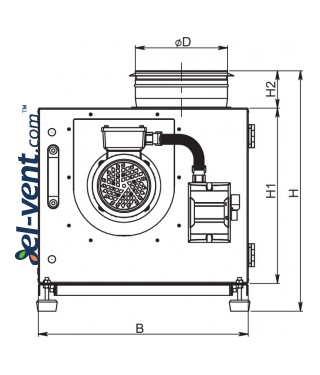

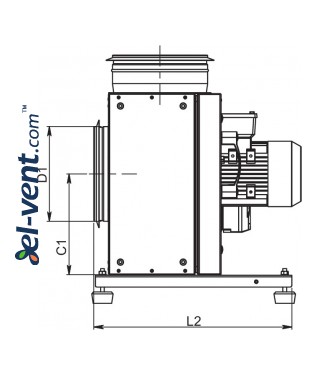

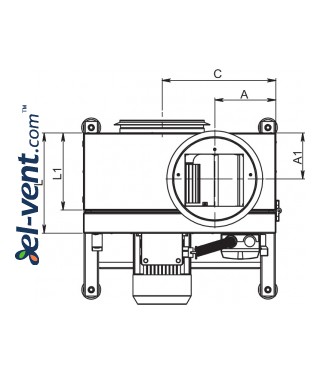

⌀D ⌀D1 L L1 L2 H* H1 H2 B A A1 C C1
EFT120/160 200 200 228 173 414 496 355 80 413 123 109 237 195
EFT120/180 200 200 237 182 417 524 382 80 456 145 109 270 213
EFT120/200 200 200 250 196 500 548 407 80 484 145 117 287 228
EFT120/225 250 250 277 222 500 597 456 80 537 161 131 305 253
EFT120/250 315 315 290 136 620 651 500 90 577 170 146 342 278
EFT120/280 315 315 308 253 620 688 537 90 626 180 153 367 304
EFT120/315 315 315 298 242 620 752 600 90 695 195 142 410 339
EFT120/355 400 400 340 285 620 905 655 190 770 211 170 455 370
EFT120/400 400 400 358 298 620 890 640 190 750 202 170 450 355





Code
Phases
Voltage, V
Frequency, Hz
Power, kW
Current, A
Speed, min-1
Capacity, m³/h
Weight, kg
EFT120/160
3
400
50
0.18
0.57
1310
849
22
EFT120/180
3
400
50
0.29
1.00
1340
1303
25
EFT120/200
3
400
50
0.54 1.44 1390 1826 29
EFT120/225
3
400
50
0.92 1.72 1430 2860 34
EFT120/250
3
400
50
1.60 3.37 1430 3860 55
EFT120/280
3
400
50
2.66 4.70 1440 5236 45
EFT120/315
3
400
50
0.18 0.68 1330 1676 45
EFT120/355
3
400
50
0.29 0.98 1340 2561 53
EFT120/400 3 400 50 0.47 1.45 1390 3487 56


Pressure loss diagrams
