Silenced centrifugal fans CS ≤9500 m³/h

Price / CS:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

Silenced centrifugal fans CS ≤9500 m³/h

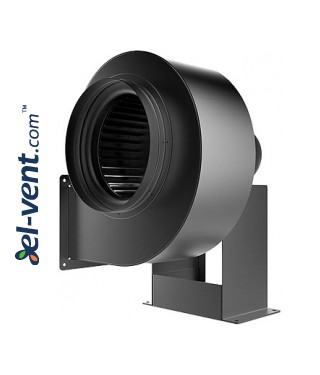

  • CS - silenced centrifugal duct fans to extract air and fumes through medium/long sized ducts
  • suitable for application on machines where a forced ventilation or air suction is required
  • temperature of extracted air 50 °C
  • steel plated frame protected by an epoxy-based anticorrosive paint and aluminium centrifugal impeller statically and dynamically balanced
  • suitable to overcome high pressure losses due to ducts resistance
  • motor speed can be regulated through industrial controllers RGM 2 (310/4M), RGM 4 (320/4M), RGT 1 (310/4T) and RGT 2 (320/4T, 330/4T and 340/4T)
  • supplied with ball bearing motor IP55 protected, insulation class F
  • in accordance with the essential requirements of 2006/42/EC Directive concerning machines and European Standards UNI EN ISO 13857, UNI EN ISO 12499, CEI EN 60204-1
  • made in Italy - O.ERRE
  • 1 year warranty
  • it is recomended to install fan with sealing clamps:







Standard product supplied with impeller housing position CCW 270, different positions available on request

Code
A
B
Ø C
D
E
F

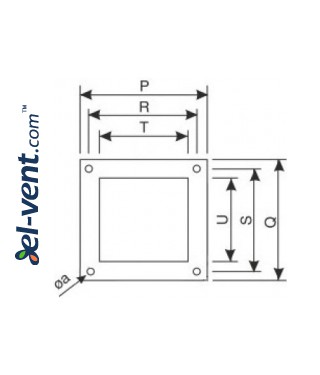

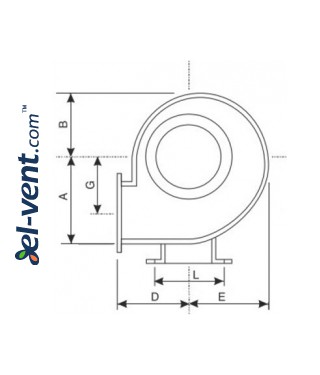

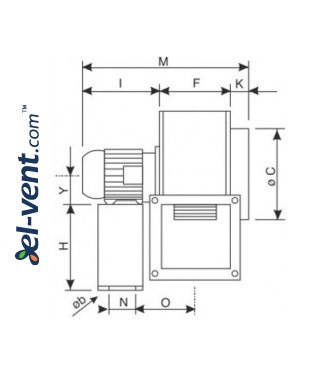

G H Y K I L M N O P Q R S T U z Ø a Ø b
CS310 139 108 180 127 122 94 91 - 63 42 190 - 326 - - 135 135 114 114 88 90 4 8.2 -
CS320 172 128 200 146 150 112 117 - 63 45 190 - 347 - - 152 152 126 126 105 105 4 8.2 -
CS330 209 163 250 147 188 141 139 - 71 40 210 - 391 - - 191 191 165 165 134 134 4 8.2 -
CS340 250 194 250 178 222 164 162 - 80 45 240 - 449 - - 225 235 195 205 161 170 4 8.2 -
CS350 290 225 315 210 260 194 192 245 80 50 240 120 484 120 149 255 255 225 225 191 194 4 8.2 11
CS360 290 225 315 210 260 194 192 245 90 50 255 120 499 120 155 255 255 225 225 191 194 4 8.2 11
CS370 334 244 355 230 250 221 210 350 100 50 315 170 586 170 173 284 305 254 275 313 244 4 10.2 11
CS380 429 315 400 300 370 249 280 350 112 62 330 170 641 170 194 310 360 280 330 241 295 8 9 11
Code
IP class
Phase
N° poles
Voltage, V at 50Hz
Capacity, m³/h
Pressure, Pa
Power, W Current, A Noise level, dB(A)2m Speed, min-1 Weight, kg
230 V 400 V
CS310/4M 55 I 4 230 500 155 110 0.72 - 64 1400 8.0
CS320/4M 55 I 4 230 800 200 130 0.78 - 67 1400 9.0
CS310/4T 55 III 4 400 500 155 110 0.7 0.4 64 1400 8.0
CS320/4T 55 III 4 400 800 200 130 0.74 0.43 67 1400 9.0
CS330/4T 55 III 4 400 1500 360 300 1.2 0.7 70 1400 11.0
CS340/4T 55 III 4 400 2900 450 800 2.8 1.6 73 1400 21.0
CS350/4T 55 III 4 400 4100 430 1300 4.0 2.3 76 1400 24.0
CS360/4T 55 III 4 400 5200 630 1800 6.0 3.5 80 1400 27.0
CS370/4T 55 III 4 400 6000 650 2600 8.7 5.0 84 1400 42.0
CS380/4T 55 III 4 400 9500 950 4500 15.0 9.0 88 1400 63.0



IP55 speed controllers RGM 2 (310/4M), RGM 4 (320/4M), RGT 1 (310/4T) and RGT 2 (320/4T, 330/4T and 340/4T)



Pressure loss diagrams
