Ventilation units CV-D ≤11900 m³/h

Type / Price:
Qty.:

European delivery - 28 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

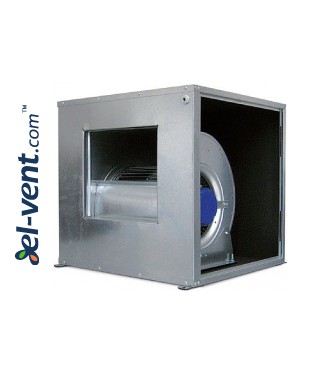

Ventilation units CV-D ≤11900 m³/h

  • CV-D - box fans directly driven with sound absorbing lining, equipped with double inlet centrifugal fan with forward curved blades
  • series composed by 8 sizes, with flow rate starting from 1230 m³/h up to 11900 m³/h
  • working temperature +60 °C
  • lightweight self-supporting galvanised steel sheet lined with sound-absorbing material of thickness 5 mm
  • equipped with power supply cable gland
  • inspection door motor side with lock system CE compliance
  • single phase 230 V or three phase 400 V ball bearing motors,  direct coupled, IP54 protected, Class F
  • single speed as default, three speed version available on request
  • made in Italy
Code
A
H
B C x D E
CV-D 7/7 450 460 500 230 x 208 120
CV-D 9/7 500 520 550 230 x 263 110
CV-D 9/9 500 520 550 300 x 263 110
CV-D 10/8 550 575 600 260 x 292 120
CV-D 10/10 550 575 600 326 x 292 115
CV-D 12/9 650 650 700 300 x 345 115
CV-D 12/12 650 650 700 300 x 345 115
CV-D 15/15 800 755 800 473 x 404 110





Code
Phases / Poles
Voltage, V
Frequency, Hz
Power, kW
Current, A
Speed, min-1
Capacity, m³/h
Pressure, Pa
Noise level, dB2m
Weight, kg
CV-D 7/7-4M 1 / 4 230 50 0.15 1.4 1230 1520 255 56 20
CV-D 7/7-6M 1 / 6 230 50 0.07 0.6 820 1230 128 50 20
CV-D 9/7-4M 1 / 4 230 50 0.37 2.9 1320 2600 461 63 26.8
CV-D 9/7-6M 1 / 6 230 50 0.25 2.3 850 2200 177 60 26.8
CV-D 9/9-4M 1 / 4 230 50 0.37 2.9 1320 2800 363 63 29
CV-D 9/9-6M 1 / 6 230 50 0.15 1.2 850 2200 157 57 27.5
CV-D 10/8-4M 1 / 4 230 50 0.55 5.7 1310 3600 510 67 33
CV-D 10/8-6M 1 / 6 230 50 0.25 2.3 830 2900 245 61 33
CV-D 10/10-4M 1 / 4 230 50 0.37 2.9 1320 2800 461 62 33
CV-D 10/10-6M 1 / 6 230 50 0.25 2.3 830 3200 216 59 32.5
CV-D 12/9-6M 1 / 6 230 50 0.55 4.7 900 5500 334 66 44.8
CV-D 12/12-6M 1 / 6 230 50 0.55 4.7 850 4900 294 61 46.4
CV-D 12/9-6T 3 / 6 400 50 1.1 4.8 850 7000 314 72 46.6
CV-D 12/12-6T 3 / 6 400 50 1.1 4.8 850 7800 314 72 48
CV-D 15/15-6T 3 / 6 400 50 2.2 9.2 890 11900 490 72 71.8
