Cross flow heat recovery unit Tempero ECO HV 3200 E BP

PRICE:
7,853.94 €
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

Cross flow heat recovery unit Tempero ECO HV 3200 E BP

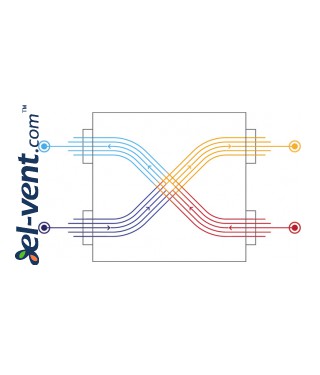

  • Tempero ECO HV E BP - cross flow heat recovery units for medium and big premises
  • heat exchange efficiency up to 70 %
  • ultra silent operation - on maximal speed only 45.5 dB
  • insulation class I
  • when outside temperature is -2 °C and internal temperature is 21 °C the air blown into the room will be around 14 °C
  • equipped with filters G4 both for inlet and outlet

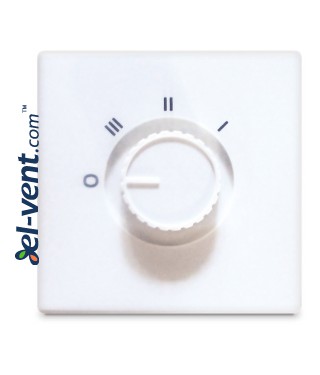

  • adjustable speed: through RG HV controller, by 3 intensity levels
  • equipped with automatic BY-PASS
  • in compliance with ERP 2016 directive
  • 2 years guarantee
  • made in Italy
Code
A
B
Ø C
D
E
F
G
ECO HV 3200 E BP
1800 138 400 830 40 840 1800



Code
Voltage, V at 50 Hz
Capacity m³/h Pressure Power, W Current, A Connectors Ø mm
Noise level, dB(A)3m
Weight, kg
mmH2O Pa
ECO HV 3200 E BP 230 3500 34.7 340 1500 16.0 400 45.5
270



Performance curve
