Heat and energy recovery unit ERGO250

PRICE:
1,098.24 €    1,464.33 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

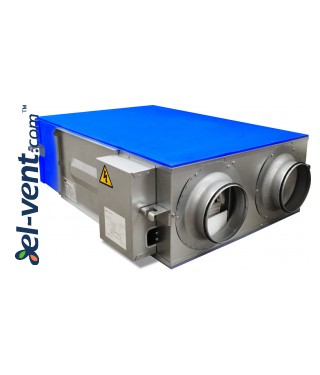

Heat and energy recovery unit ERGO250

  • for small and medium-sized indoor ventilation

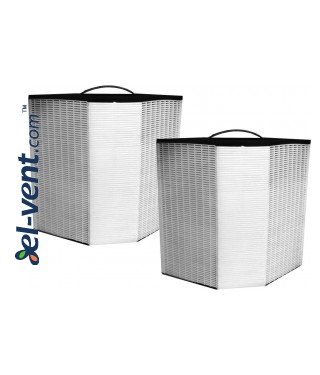

  • hexagonal counter-flow heat exchanger is build from plastic and cellulose, which has high rate of humidity permeability, good air tightness and resistance to aging. Special paper has gaps between fibers big enough to let the H2O water particles pass thru and holds bigger particles like CO2, NH3, CH4. Therefore it prevents any pollution from infiltrating air stream

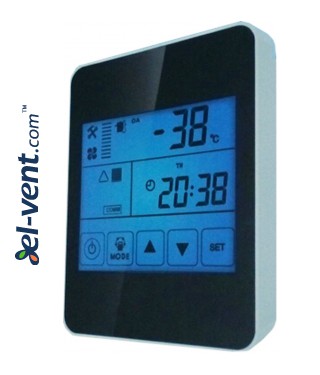

  • equipped with electronic control panel, LCD touch panel ordered separately
  • weekly timer is set for each day by the control panel
  • 10-speed energy saving fans
  • with ANTIFROST - possibility to adjust by the control panel
  • integrated BYPASS system - will help to cool the premises during the warm season (alternate fan speed algorithm)
  • not required condensate drainage - cellulose heat exchanger compensates humidity indoors
  • possibility to connect electric heaters on fresh air and air supply ducts and operate it with control panel
  • possibility to connect CO2 and humidity sensors and control it with LCD touch screen
  • with EU4 class filters, filter dimensions 180 x 466 mm
  • highly economical, uses only 81 W
  • efficiency 75 %
  • extremely quiet operation 34.5 dB
  • for mounting on the ceiling
  • 2 years warranty



HRV installation

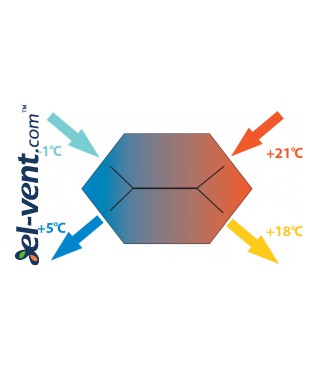

HRV heat exchanger

Code
A
B
C
D E
F
G
I
M
ERGO250 599
882
100
160 810
657
19
315
270



  • SA - supply air
  • RA - room air
  • EA - exhaust air
  • OA - outdor air

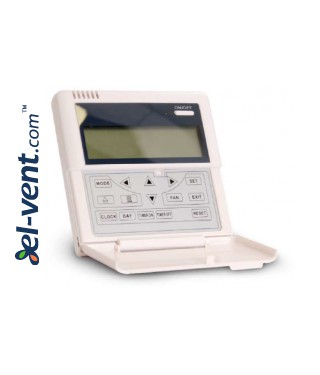

HRV control panel and it's measurments, mm

Code
Capacity, m³/h
Enthalpy Efficiency, %
Efficiency, %
Noise level, dB
Voltage, V
Power, W
Weight, kg
Summer
Wintter
ERGO250
250 70 63 75 34.5
230
81
29



HDE/CO1 heater connection to the unit electric scheme



Pressure loss and efficiency parameters
