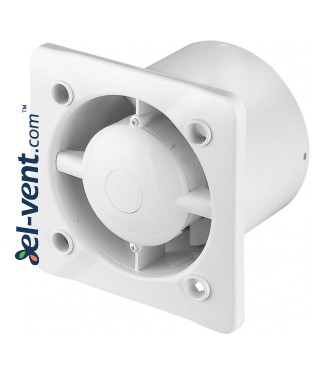

Bathroom fan with ball bearings and timer SISTEMA+100T, Ø100 mm

PRICE:
54.95 €    73.25 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Bathroom fan with ball bearings and timer SISTEMA+100T, Ø100 mm

  • can be mounted in any position, in the wall or ceiling
  • choose interior panel by your style
  • to connect use three-core cable
  • with Italian quality motor with ball bearings
  • ABS plastic housing
  • mount with screws (supplied)
  • made in Poland
  • 5 years warranty



Application area

Code
Ø
A
B
X
Y
W
Z
SISTEMA+100
100
109
109
128
128
88
77
SISTEMA+125 125 137 137 156 156 88 77





Code
Voltage, V
Frequency, Hz
Power, W
Capacity,
m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
SISTEMA+100T
230
50
4.4
95
26
X4
32



Download the installation guide



Connection to the power supply

T - phase through switch
N - null
L - phase
