Extractor fan with ball bearings ORBIT100, Ø100 mm

PRICE:
17.88 €    35.77 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

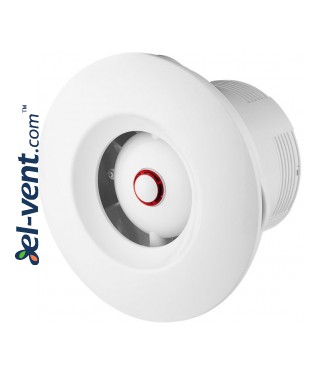

Extractor fan with ball bearings ORBIT100, Ø100 mm

  • can be mounted in any position, in the wall or ceiling
  • with ball bearing motor
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland
  • 5 years warranty

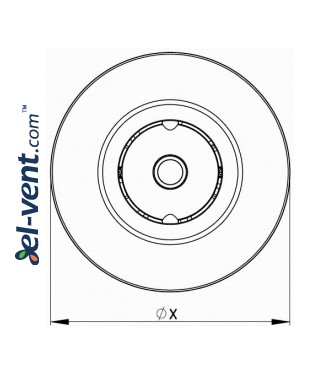

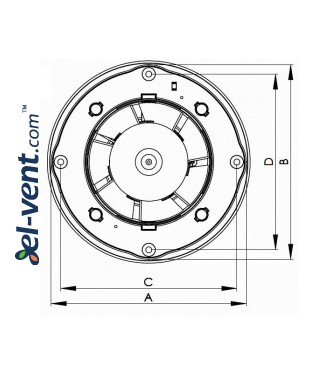

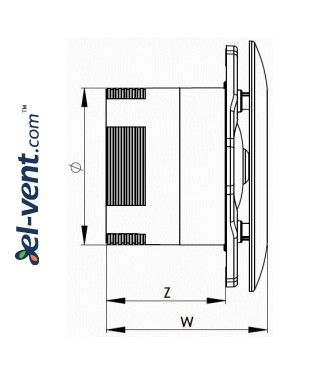

Code
Ø
A
X
W
Z
ORBIT100
100
139
160
103
77
ORBIT125 125 164 187 107 77
ORBIT150 150 189 210 120 83







Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
ORBIT100
230
50
10
105
35
X4
33



Pressure loss diagram

Connection to the power supply

N - null
L - phase
