Electric air heaters with two contactors HDE/CO2

Diameter, mm / Powe, kW:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

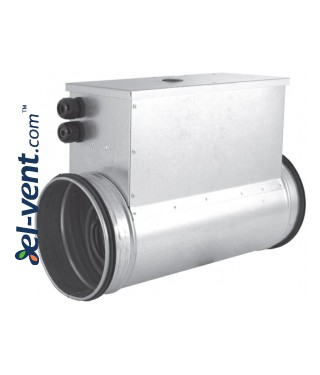

Electric air heaters with two contactors HDE/CO2

  • possibility to connect directly through contactors to the HRV unit and other device from which comes 230 V signal
  • with double protection from overheating - first, integrated automatic thermostat turns on when temperature exceeds +60 °C, second, manual theromstat +90 °C (manual restart is required)
  • maximum air flow temperature +40 °C
  • minimum air flow speed 1.5 m/s
  • body made from galvanized steel
  • heating elements made from stainless steel
  • with rubber gaskets
  • 2 years warranty
Code
Ød
A
B
H
L
HDE/100
100
280
100
110
380
HDE/125
125
280
100
110
380
HDE/150
150
280
120
110
380
HDE/160
160
280
120
110
380
HDE/200
200
300
160
110
400
HDE/250
250
300
190
110
400
Code
Power, W
Voltage, V
Heating elements
HDE/100/0.6
600
1x230
2
HDE/100/1.2
1200
1x230
4
HDE/125/0.6
600
1x230
2
HDE/125/1.2
1200
1x230
4
HDE/150/1.0
1000
1x230
2
HDE/150/2.0
2000
1x230
4
HDE/160/1.0
1000
1x230
2
HDE/160/2.0
2000
1x230
4
HDE/200/1.0
1000
1x230
2
HDE/200/2.0
2000
1x230
4
HDE/250/1.0
1000
1x230
2
HDE/250/2.0
2000
1x230
4


Wiring schema

L, N - supply voltage, 1 x 230 V, 50 Hz
L1, N1 - control unit supply voltage, 1 x 230 V, 50 Hz
PE - electric cable PE
R1, R2, ..Rn - heating elements
TA - integrated automatic thermostat up to +60 °C
TR - integrated manual thermostat up to +90 °C
