Tile access panel 200x500 mm MPCV8

PRICE:
20.35 €    27.14 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Tile access panel 200x500 mm MPCV8

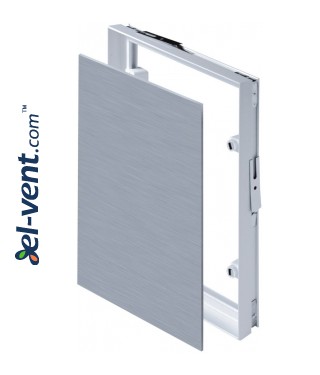

  • with adjustable magnets (see picture below)
  • designed to mount under ceramic tile
  • maximum tile thickness 10.6 mm
  • with mounting frame from PVC plastic
  • galvanized
  • for installation in the ceiling or wall
  • easy to install with mounting glue or cement
  • suitable for installation in wet areas
  • it is recomended to use sustion holder for opening:

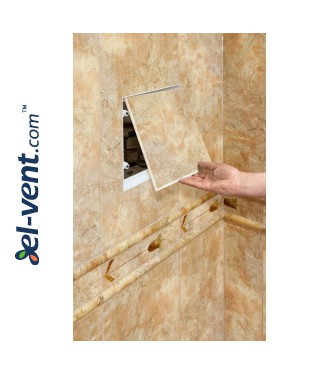

Installation example

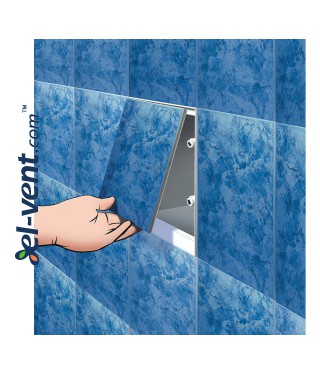

opened

closed

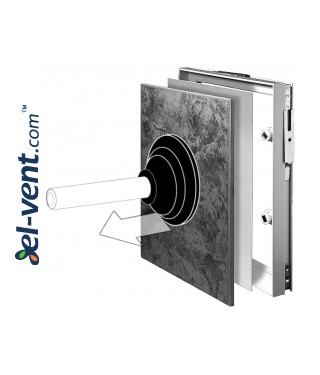

Fixing and fitting

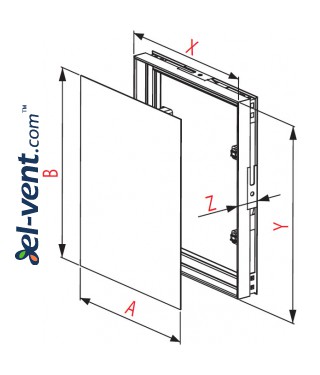

Code
A
B
X
Y
Z
MPCV8
200
500
205
505
30
