Centrifugal duct fans TURBO-C ≤1400 m³/h


  1. Ventilation systems ›
  2. Industrial fans
  3. › Kitchen fans
  4. › Centrifugal duct fans TURBO-C ≤1400 m³/h

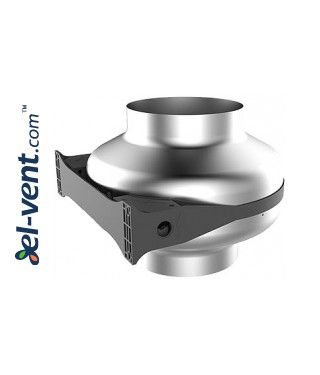

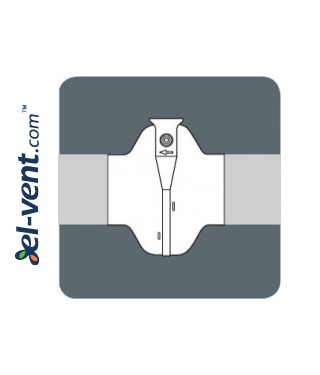

Centrifugal duct fans TURBO-C ≤1400 m³/h Centrifugal duct fans TURBO-C ≤1400 m³/h - drawing Centrifugal duct fans TURBO-C ≤1400 m³/h - drawing 2 Centrifugal duct fans TURBO-C ≤1400 m³/h - installation method Centrifugal duct fans TURBO-C ≤1400 m³/h - mounting Centrifugal duct fans TURBO-C ≤1400 m³/h - 7/5000 bearings
Price / TURBO-C:
Select
  • 100 164.15 €
Speed controller:
Select
  • EETX15 1.5 A, IP44/54 61.58 € 46.19 € (-24%)
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Centrifugal duct fans TURBO-C ≤1400 m³/h

Send
  • TURBO-C - In Line centrifugal high performances fans to convey air or fumes through Ø100-315 mm ducts
  • suitable for domestic, commercial and industrial environments
  • max. temperature of extracted air 55 °C
  • the range is composed by 13 models in standard version with high performances and in ES version with reduced noise level and energy consumption
  • ball bearing motor protected by a non self resetting thermal cut-out
  • zinc plated steel frame, high resistance motor support with incorporated airflow fins
  • integrated mounting bracket for easy and quick installation
  • holes provided in the bracket allow mounting with cords
  • electrical box IP54 protected
  • product IPX4 protected
  • double insulated product, without ground wire for fast connection
  • in accordance with EN 60335-2-80
  • made in Italy
  • 2 years warranty
  • it is recomended to install fan with sealing clamps:

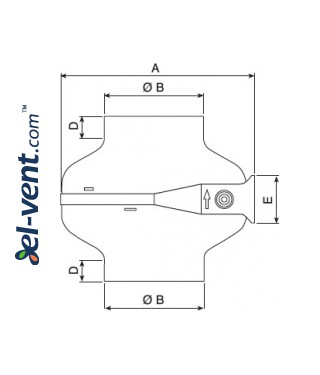

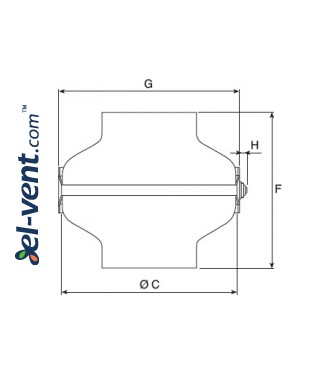

Code
A
Ø B
Ø C
D
E
F
 G H
TURBO-C100ES 287 98 275 17 70 242 282 12
TURBO-C100 287 98 275 17 70 242 282 12
TURBO-C125ES 287 123 275 24 70 242 282 12
TURBO-C125 287 123 275 24 70 242 282 12
TURBO-C150ES 287 148 275 32 70 242 282 12
TURBO-C150 287 148 275 32 70 242 282 12
TURBO-C160ES 287 158 275 35 70 242 282 12
TURBO-C160 354 158 345 24 84 272 345 12
TURBO-C200ES 354 198 345 34 84 272 345 12
TURBO-C200 354 198 345 34 84 272 345 12
TURBO-C250 354 248 345 48 84 272 345 12
TURBO-C315ES 354 313 345 48 84 272 345 12
TURBO-C315 354 313 345 48 84 272 345 12
Code
 Ø hole, mm
Voltage, V
Frequency, Hz
Capacity, m³/h
Pressure, Pa
 Power, W Current, A Noise level, dB(A)3m Speed, min-1 Weight, kg
TURBO-C100ES 100 220-240 50 210 294 40 0.25 45 2000 3.0
TURBO-C100 100 220-240 50 270 294 60 0.35 53 2600 3.0
TURBO-C125ES 125 220-240 50 290 285 40 0.25 45 1850 3.0
TURBO-C125 125 220-240 50 400 285 60 0.38 52 2530 3.0
TURBO-C150ES 150 220-240 50 370 265 40 0.25 42 1850 3.0
TURBO-C150 150 220-240 50 500 285 60 0.38 52 2530 3.0
TURBO-C160ES 160 220-240 50 540 275 60 0.38 52 2500 3.0
TURBO-C160 160 220-240 50/60 710 363 90 0.43 56 2500 4.5
TURBO-C200ES 200 220-240 50/60 730 294 90 0.42 56 2550 4.5
TURBO-C200 200 220-240 50/60 1050 540 180 0.78 58 2550 5.5
TURBO-C250 250 220-240 50/60 1200 549 180 0.78 59 2590 5.5
TURBO-C315ES 315 220-240 50/60 1250 490 180 0.78 59 2600 5.5
TURBO-C315 315 220-240 50/60 1400 638 280 1.24 60 2500 6.0



Speed controller RGM 2



Pressure loss diagrams
