Air distributor for HDPE system Type E

Air distributor type / Ød2 / n / d1 type (F - female, M - male):
Price / Ød1, mm:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

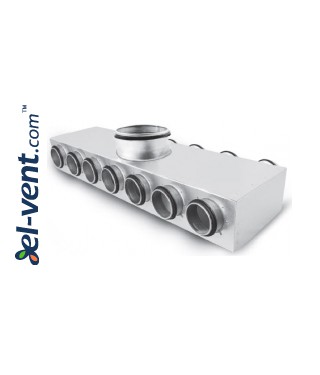

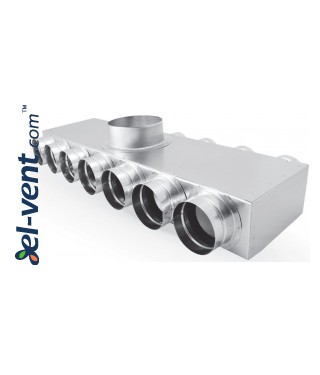

Air distributor for HDPE system Type E

Attention! The positions listed below are keeping in stock, delivered within 14 days.:

  • OSE75/14/200M
  • OSE90/10/160M

Types of air distributors, marking
OS - from galvanized steel, n female-connectors - with rubber seal
OSI - from galvanized steel, insulated with 9 mm anti-condensation, noise-reducing insulation, n female-connectors - with rubber seal

Ød1 - upper connector diameter, mm
Ød2 - side connectors diameter, mm
n - Ø75 or 90 mm, the number of connections on the front and/or rear side of the distributor
F - the upper connector - female
M - the upper connector - male

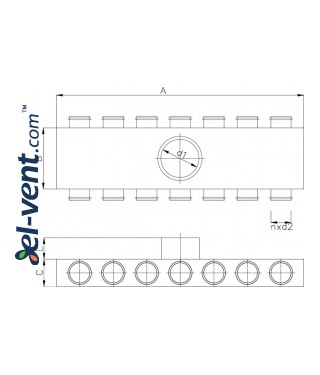

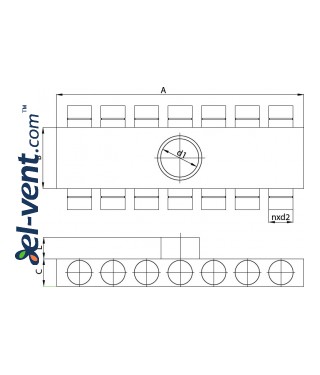

Code
A B C L
d1
n d2
OSE75/6 300 300 90 60 125 6 75
OSE75/8
400 400 90 60
160
8 75
OSE75/10 500 500 90 60 200 10 75
OSE75/14 700 300 90 60 200 14 75
OSE90/6 360 360 110 60 160 6 90
OSE90/8 480 480 110 60 200 8 90
OSE90/10 600 600 110 60 200 10 90
OSE90/14 840 360 110 60 200 14 90
