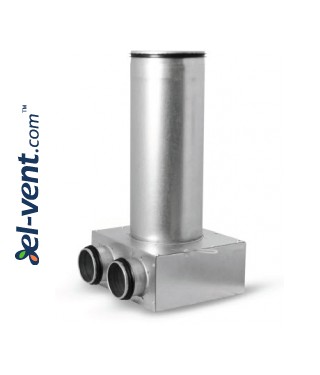

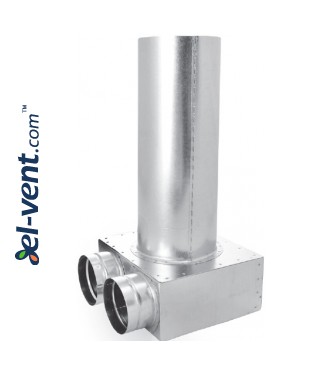

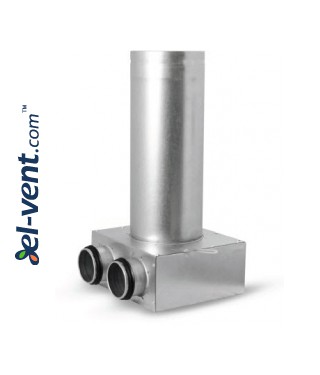

Air distributor for HDPE system Type B

Air distributor type / Ød2 / n / d1 type (F - female, M - male):
Price / Ød1, mm:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

Air distributor for HDPE system Type B

Attention! The positions listed below are keeping in stock, delivered within 14 days.:

  • OSB75/1/080F
  • OSB75/1/100F
  • OSB75/2/125F
  • OSB75/3/125F
  • OSB90/2/125F

Types of air distributors, marking
OS - from galvanized steel, n female-connectors - with rubber seal
OSI - from galvanized steel, insulated with 9 mm anti-condensation, noise-reducing insulation, n female-connectors - with rubber seal

Ød1 - upper connector diameter, mm
Ød2 - side connectors diameter, mm
n - Ø75 or 90 mm, the number of connections on the front and/or rear side of the distributor
F - the upper connector - female
M - the upper connector - male

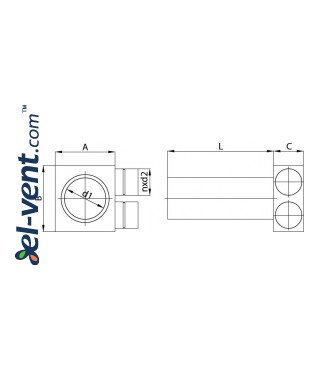

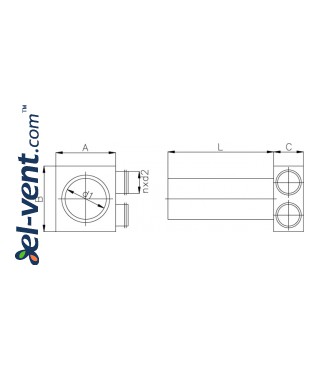

Code
A B C L
d1
n d2
OSB75/1 180 200 90 320 80 1 75
OSB75/2
180 200 90 320
125
2 75
OSB75/3 180 300 90 320 125 3 75
OSB90/1 200 240 110 320 100 1 90
OSB90/2 200 240 110 320 125 2 90
OSB75/3 200 360 110 320 125 3 90
