Centrifugal bathroom fans DIVERSO

Price / Diverso:
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Centrifugal bathroom fans DIVERSO

Attention! DIVERSO80T and DIVERSO160T are always on the stock, other models delivery time - 30 days

  • DIVERSO - centrifugal fans to extract air through ducting or pipes from Ø80-100 mm
  • suitable for wall/ceiling mounting even through ducts in awkward places thanks to the position of the outlet hole in the corner
  • ball bearing motor
  • double speed
  • backdraught shutter to prevent ingress of air and foul odours
  • simple to remove the washable filter
  • three models: Base, T (timer), HT (hygrostat and timer) model options
  • T (timer) turn-off delay adjustable from 2 to 25 min.
  • HT (hygrostat and timer) - the fan automatically starts when the humidity in the room is higher than the preset value, adjustable from 40% to 90%
  • double insulated product, without ground wire for fast connection
  • body and grille in white ABS
  • adjustable speed through RGE or RG 5 controller (base version only)
  • IPX5 protected (EN 60529), 45 °C working temperature
  • in accordance with Standard EN 60335-2-80
  • made in Italy - O.ERRE
  • 2 years warranty



Open the cover and reach the filter



The rotating body allows air extraction from different spigot positions

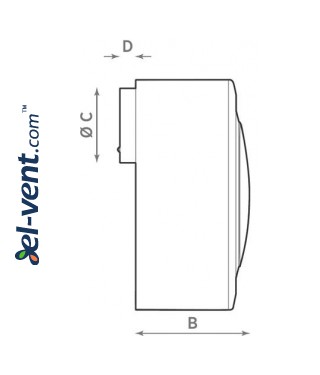

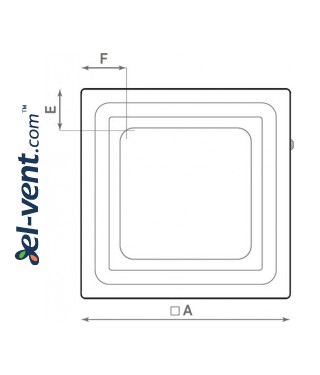

Code A B Ø C D E F
DIVERSO80 244 117 75.5 20 55 55
DIVERSO160 300 148 96.7 20.5 60 65
DIVERSO240 300 148 96.7 20.5 60 65
Code Ø hole, mm
Voltage, V
Frequency, Hz
Capacity, m3/h max./min.
Pressure,
Pa
max./min.
Power, W max./min. Noise level, dB(A)3m max./min. Weight, kg
DIVERSO80 80-100 220-240 50 80/60 177/157 28/18 40/36 1.5
DIVERSO80T 80-100 220-240 50 80/60 177/157 28/18 40/36 1.5
DIVERSO80HT 80-100 220-240 50 80/60 177/157 28/18 40/36 1.5
DIVERSO160 100 220-240 50 170/120 294/245 50/35 42/36 2.7
DIVERSO160T 100 220-240 50 170/120 294/245 50/35 42/36 2.7
DIVERSO160HT 100 220-240 50 170/120 294/245 50/35 42/36 2.7
DIVERSO240 100 220-240 50 240/140 422/295 80/45 47/38 2.9
DIVERSO240T 100 220-240 50 240/140 422/295 80/45 47/38 2.9
DIVERSO240HT 100 220-240 50 240/140 422/295 80/45 47/38 2.9



Speed controllers RG 5 and RGE





Pressure loss diagrams

low speed / high speed
