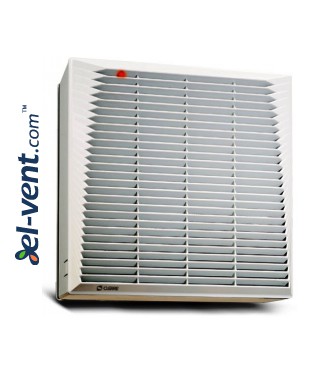

Window fan with automatic shutter SMART

Price / SMART:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

Window fan with automatic shutter SMART

Attention! SMART23/9AR SILENT are always on the stock, other models delivery time - 30 days

  • axial fans to extract air directly outside window, double glazing, wall or panel mounting up to 50 mm
  • smart gaskets to prevent vibration and water ingress
  • ball bearing motor (except 15/6 M-A, 23/9 and 30/12 Silent version)
  • double insulated product, without ground wire for fast connection
  • optional kit for wall and double window installation
  • operating indicator light
  • On/Off, reversible airflow (extraction/intake) and 5 speed through optional RG 5 AR controller
  • rain proof IPX4 external grille
  • body and grilles in white ABS
  • integrated internal automatic shutter prevents ingress of air from outside while turned off

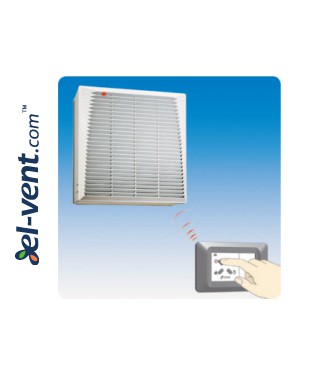

  • Wi-Fi version provided with remote radio control
  • in accordance with Standard EN 60335-2-8
  • made in Italy - O.ERRE

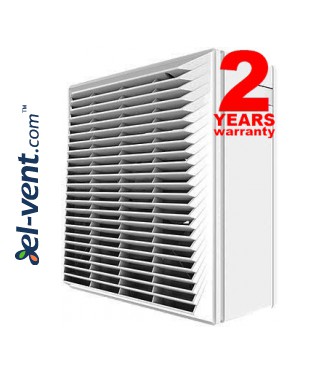

  • 2 years warranty

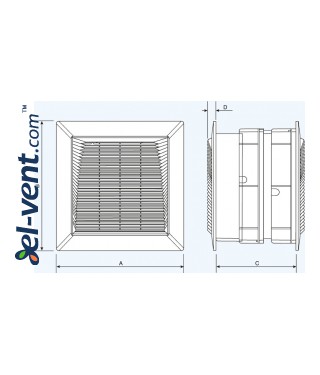

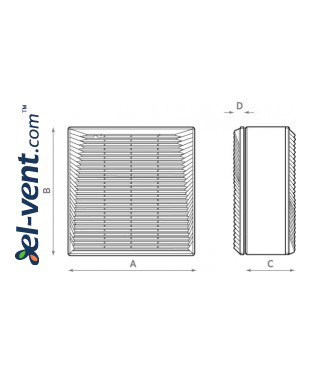

Code
A
B
C
D
Ø hole in the window
window / wall thickneses
15/6A-M
215
215
100
30
184-195
3-20
23/9M-AR-Silent-Wi-fi
321
331
141
30
254-262
3-50
30/12AR-Silent-Wi fi
375
385
148
30
324-337
3-50

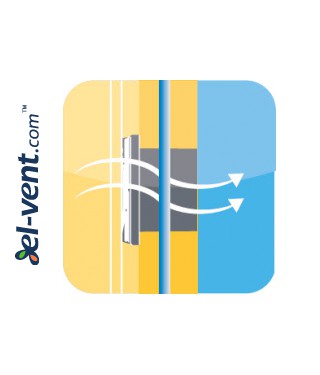

Glass installation

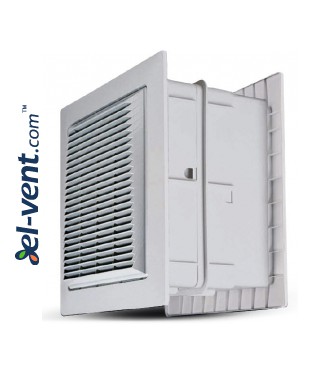

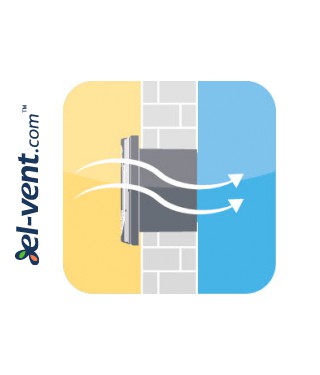

Wall installation

Code
Ø hole, mm
Voltage, V
Frequency, Hz
Capacity, m3/h
Pressure,
Pa
Power, W Noise level, dB(A)3m Weight, kg
15/6M 184-195 220-240 50 230 50 29 40 1.3
15/6A 184-195 220-240 50 230 50 29 40 1.3
23/9M 254-262 220-240 50/60 750 65 40 43 3.7
23/9AR 254-262 220-240 50/60 750 65 40 43 3.7
23/9AR Wall 385 x 375 220-240 50/60 750 65 40 41 3.7
23/9AR Wi-Fi 254-262 220-240 50/60 750 65 40 43 3.7
23/9AR Silent 254-262 220-240 50/60 500 25 30 33 3.7
30/12AR 324-337 220-240 50/60 1400 80 60 46 6.1
30/12AR Wi-Fi 324-337 220-240 50/60 1400 80 60 46 6.1
30/12AR Silent
324-337 220-240 50/60 1000 50 45 39 5.6



Flow rates m³/h with controller RG 5 AR, (SMART15/6 M-A with RG 5 controller)

Code
I speed II speed III speed IV speed V speed
15/6 M-A 75 95 145 195 230
23/9 AR Silent 200 250 350 420 500
23/9 M-AR Wall 280 370 510 640 750
30/12 Silent 400 500 650 820 1000
30/12 AR 600 840 1050 1200 1400



Speed controllers RG 5 and RG 5 AR





Pressure loss diagrams
