Silent fan with a very low noise level, timer, speed controller and ball bearings VEGA125CTR, Ø125 mm

PRICE:
50.17 €    71.67 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

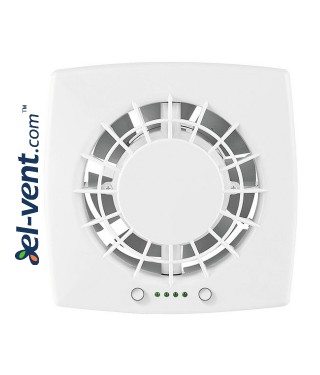

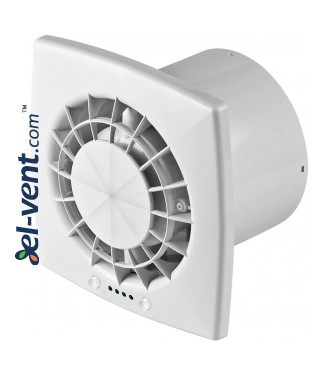

Silent fan with a very low noise level, timer, speed controller and ball bearings VEGA125CTR, Ø125 mm

  • can be mounted in any position, in the wall or ceiling
  • very quiet operation motor
  • 4 speed control
  • with timer, to connect use tree-core cable (use two core cable if you need just speed control)
  • with Italian quality motor with ball bearings
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland
  • 5 years warranty

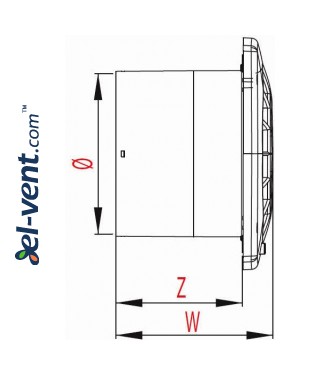

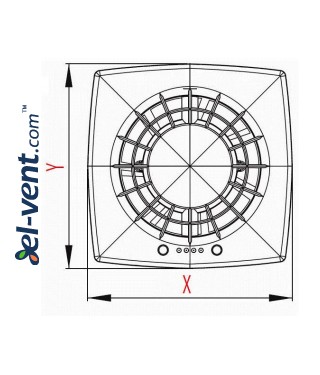

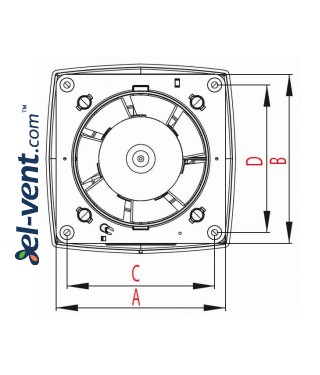

Code
Ø
A
B
C
D
X
Y
W
Z
VEGA125CTR
125
153
153
137
137
172
172
95
77
VEGA125CTR
Speed
I (min.)
II
III
IV (max.)
Capacity, m3/h
70
115
165
180
Noise level, dB (distance 3m)
21,5
26,4
33,2
38,7
Noise level, dB (distance 1m)
30,9
35,9
42,1
47,5
Power, W
6
8
10
16



Pressure loss graph. I, II, III, IV speeds are marked with the letter n:

Connection to the power supply

T - phase through switch
N - null
L - phase
