Silent fan with a very low noise level, timer, speed controller and ball bearings VEGA100CTR, Ø100 mm

PRICE:
39.01 €    55.72 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

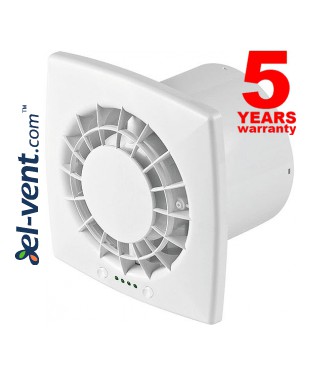

Silent fan with a very low noise level, timer, speed controller and ball bearings VEGA100CTR, Ø100 mm

  • can be mounted in any position, in the wall or ceiling
  • very quiet operation
  • 4 speed control
  • with timer, to connect use tree-core cable (use two core cable if you need just speed control)
  • with Italian quality motor with ball bearings
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland
  • 5 years warranty

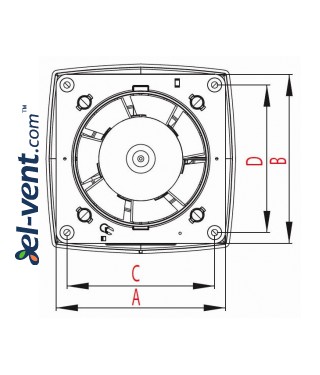

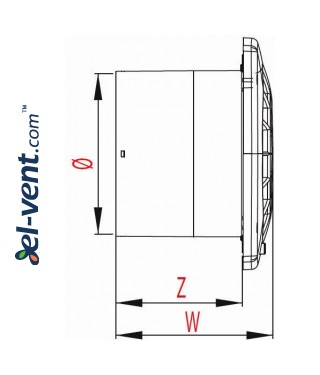

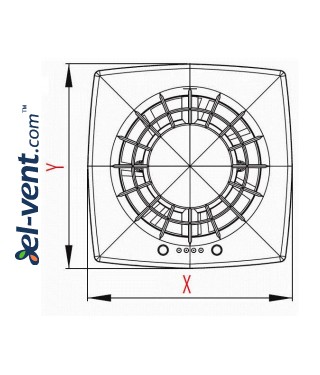

Code
Ø
A
B
C
D
X
Y
W
Z
VEGA100CTR
100
125
125
109
109
140
140
95
77
VEGA100CTR
Speed
I (min.)
II
III
IV (max.)
Capacity, m3/h
39
67
86
105
Noise level, dB (distance 3m)
20
25
32
35
Power, W
5
7
9
10



Pressure loss graph. I, II, III, IV speeds are marked with the letter n:

Connection to the power supply

T - phase through switch
N - null
L - phase
