Silent fan with ball bearings and timer SILENCE100T, Ø100 mm

PRICE:
49.99 €    71.40 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

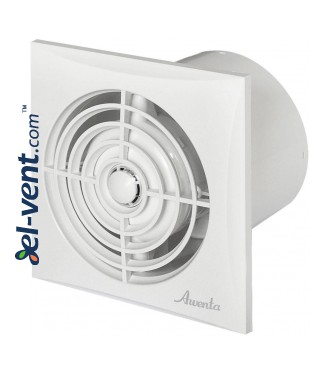

Silent fan with ball bearings and timer SILENCE100T, Ø100 mm

  • can be mounted in any position, in the wall or ceiling
  • noise level only 26 dB
  • power only 4.4 W
  • with ball bearing motor
  • with timer, to connect use three-core cable
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland
  • 5 years warranty

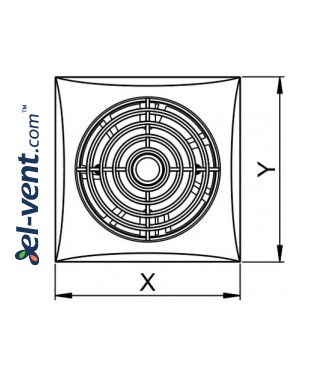

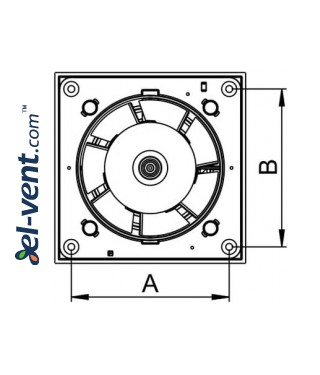

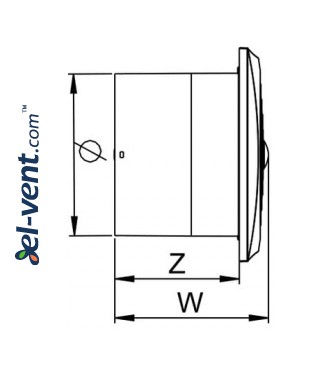

Code
Ø
A
B
C
D
X
Y
W
Z
SILENCE100T
100
125
125
109
109
132
132
94
77
Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m3/h
Noise level, dB
Protection class IP
Pressure,
Pa
SILENCE100T
230
50
4.4
95
26
X4
32



Pressure loss diagram

Connection to the power supply

T - phase through switch
N - null
L - phase
