Fan for bathroom with ball bearings and timer ONDA10/4T, Ø100 mm

PRICE:
92.95 €    109.36 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

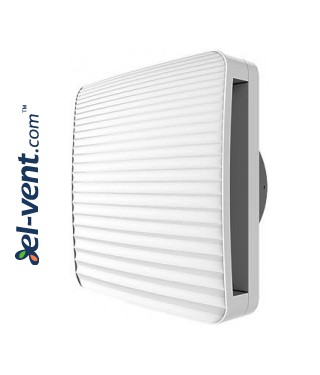

Fan for bathroom with ball bearings and timer ONDA10/4T, Ø100 mm

  • can be mounted in any position, in the wall or ceiling
  • with timer
  • with ball bearing motor
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • with backdraught shutter
  • made in Italy - O.ERRE
  • in accordance with Standard EN 60335-2-80
  • 5 years warranty

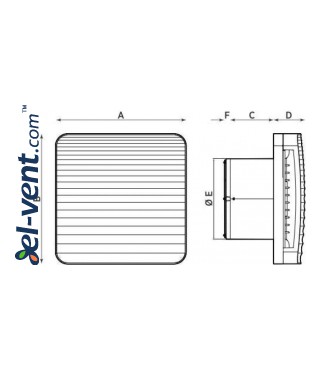

Code
A
B
C
D
ØE
F
ONDA10/4T
160
160
53
40
100
7
Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m3/h
Noise level, dB
Protection class IP
Pressure,
Pa
Max. working temp. °C
ONDA10/4T
220-240
50
10
95
34.6
X4
28 45



Pressure loss diagram



Connection to the power supply

T - phase through switch
N - null
L - phase
