Extractor fan with ball bearings ORBIT150, Ø150 mm

PRICE:
28.74 €    41.06 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

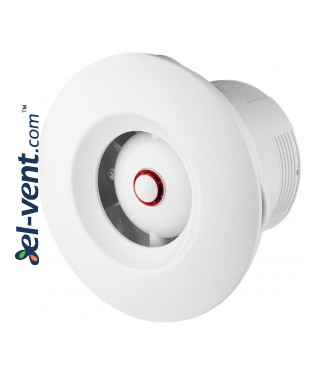

Extractor fan with ball bearings ORBIT150, Ø150 mm

  • can be mounted in any position, in the wall or ceiling
  • with ball bearing motor
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland
  • 5 years warranty

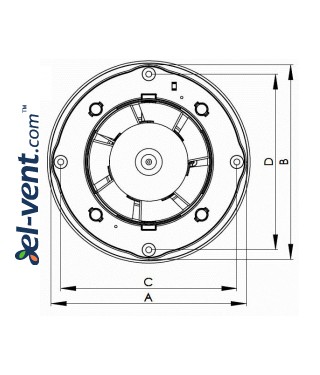

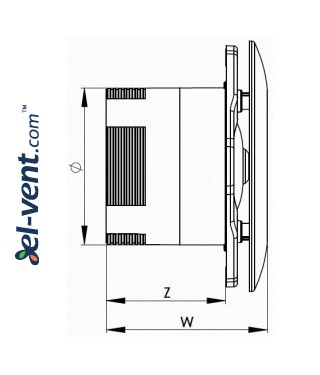

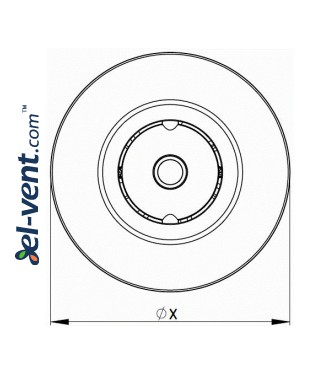

Code
Ø
A
B
C
D
X
W
Z
ORBIT150
150
206
206
189
189
210
120
83
Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m3/h
Noise level, dB
Protection class IP
Pressure,
Pa
ORBIT150
230
50
20
210
39
X4
49



Pressure loss diagram

Connection to the power supply

N - null
L - phase
